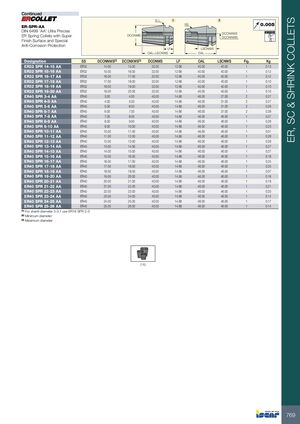

Continued ER, SC & SHRINK COLLETS G.L. 1 2 ER-SPR-AA SS 0.005 DIN 6499 'AA' Ultra Precise 46-48 HRc DCONXWS ER Spring Collets with Super DCONMS DCONNWS Finish Surface and Special Anti-Corrosion Protection LF LSCNWS OAL=LSCNWS OAL Designation SS DCONNWS(2) DCONXWS(3) DCONMS LF OAL LSCNWS Fig. Kg ER32 SPR 14-15 AA ER32 14.00 15.00 32.00 12.66 40.00 40.00 1 0.13 ER32 SPR 15-16 AA ER32 15.00 16.00 32.00 12.66 40.00 40.00 1 0.12 ER32 SPR 16-17 AA ER32 16.00 17.00 32.00 12.66 40.00 40.00 1 0.12 ER32 SPR 17-18 AA ER32 17.00 18.00 32.00 12.66 40.00 40.00 1 0.10 ER32 SPR 18-19 AA ER32 18.00 19.00 32.00 12.66 40.00 40.00 1 0.10 ER32 SPR 19-20 AA ER32 19.00 20.00 32.00 12.66 40.00 40.00 1 0.10 ER40 SPR 3-4 AA ER40 3.00 4.00 40.00 14.66 46.00 27.00 2 0.27 ER40 SPR 4-5 AA ER40 4.00 5.00 40.00 14.66 46.00 31.00 2 0.27 ER40 SPR 5-6 AA ER40 5.00 6.00 40.00 14.66 46.00 31.00 2 0.28 ER40 SPR 6-7 AA ER40 6.00 7.00 40.00 14.66 46.00 31.00 2 0.28 ER40 SPR 7-8 AA ER40 7.00 8.00 40.00 14.66 46.00 46.00 1 0.27 ER40 SPR 8-9 AA ER40 8.00 9.00 40.00 14.66 46.00 46.00 1 0.28 ER40 SPR 9-10 AA ER40 9.00 10.00 40.00 14.66 46.00 46.00 1 0.23 ER40 SPR 10-11 AA ER40 10.00 11.00 40.00 14.66 46.00 46.00 1 0.01 ER40 SPR 11-12 AA ER40 11.00 12.00 40.00 14.66 46.00 46.00 1 0.28 ER40 SPR 12-13 AA ER40 12.00 13.00 40.00 14.66 46.00 46.00 1 0.28 ER40 SPR 13-14 AA ER40 13.00 14.00 40.00 14.66 46.00 46.00 1 0.27 ER40 SPR 14-15 AA ER40 14.00 15.00 40.00 14.66 46.00 46.00 1 0.27 ER40 SPR 15-16 AA ER40 15.00 16.00 40.00 14.66 46.00 46.00 1 0.18 ER40 SPR 16-17 AA ER40 16.00 17.00 40.00 14.66 46.00 46.00 1 0.25 ER40 SPR 17-18 AA ER40 17.00 18.00 40.00 14.66 46.00 46.00 1 0.25 ER40 SPR 18-19 AA ER40 18.00 19.00 40.00 14.66 46.00 46.00 1 0.07 ER40 SPR 19-20 AA ER40 19.00 20.00 40.00 14.66 46.00 46.00 1 0.18 ER40 SPR 20-21 AA ER40 20.00 21.00 40.00 14.66 46.00 46.00 1 0.19 ER40 SPR 21-22 AA ER40 21.00 22.00 40.00 14.66 46.00 46.00 1 0.21 ER40 SPR 22-23 AA ER40 22.00 23.00 40.00 14.66 46.00 46.00 1 0.20 ER40 SPR 23-24 AA ER40 23.00 24.00 40.00 14.66 46.00 46.00 1 0.14 ER40 SPR 24-25 AA ER40 24.00 25.00 40.00 14.66 46.00 46.00 1 0.17 ER40 SPR 25-26 AA ER40 25.00 26.00 40.00 14.66 46.00 46.00 1 0.14 (1) For shank diameter 3-3.1 use ER16 SPR 2-3 (2) Minimum diameter (3) Maximum diameter 770 769
