Фрезерные инструменты Iscar 2026

ФРЕЗЫ ДЛЯ НАРЕЗАНИЯ ПАЗОВ И ПРОРЕЗЕЙ

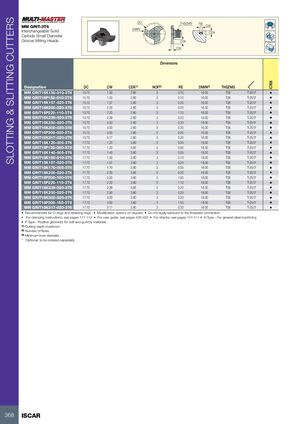

Сменные твердосплавные головки для нарезания канавок малого диаметра

Обозначение	DC	CW	CDX(1)	NOF(2)	RE	DMIN(3)	THSZMS
MM GRIT16K150-010-3T6	15.70	1.50	2.80	3	0.10	16.00	T06 T-20/3*
MM GRIT16P150-010-3T6	15.70	1.50	2.80	3	0.10	16.00	T06 T-20/3*
MM GRIT16K157-020-3T6	15.70	1.57	2.80	3	0.20	16.00	T06 T-20/3*
MM GRIT16K200-020-3T6	15.70	2.00	2.80	3	0.20	16.00	T06 T-20/3*
MM GRIT16P220-110-3T6	15.70	2.20	2.80	3	1.10	16.00	T06 T-20/3*
MM GRIT16K239-020-3T6	15.70	2.39	2.80	3	0.20	16.00	T06 T-20/3*
MM GRIT16K250-020-3T6	15.70	2.50	2.80	3	0.20	16.00	T06 T-20/3*
MM GRIT16K300-020-3T6	15.70	3.00	2.80	3	0.20	16.00	T06 T-25/3*
MM GRIT16P300-020-3T6	15.70	3.00	2.80	3	0.20	16.00	T06 T-25/3*
MM GRIT16K317-020-3T6	15.70	3.17	2.80	3	0.20	16.00	T06 T-25/3*
MM GRIT18K120-005-3T6	17.70	1.20	3.80	3	0.05	18.00	T06 T-20/3*
MM GRIT18P120-060-3T6	17.70	1.20	3.80	3	0.60	18.00	T06 T-20/3*
MM GRIT18K140-005-3T6	17.70	1.40	3.80	3	0.05	18.00	T06 T-20/3*
MM GRIT18K150-010-3T6	17.70	1.50	3.80	3	0.10	18.00	T06 T-20/3*
MM GRIT18K157-020-3T6	17.70	1.57	3.80	3	0.20	18.00	T06 T-20/3*
MM GRIT18K170-005-3T6	17.70	1.70	3.80	3	0.05	18.00	T06 T-20/3*
MM GRIT18K200-020-3T6	17.70	2.00	3.80	3	0.20	18.00	T06 T-20/3*
MM GRIT18P200-100-3T6	17.70	2.00	3.80	3	1.00	18.00	T06 T-20/3*
MM GRIT18P220-110-3T6	17.70	2.20	3.80	3	1.10	18.00	T06 T-20/3*
MM GRIT18K239-020-3T6	17.70	2.39	3.80	3	0.20	18.00	T06 T-20/3*
MM GRIT18K250-020-3T6	17.70	2.50	3.80	3	0.20	18.00	T06 T-20/3*
MM GRIT18K300-020-3T6	17.70	3.00	3.80	3	0.20	18.00	T06 T-25/3*
MM GRIT18P300-150-3T6	17.70	3.00	3.80	3	1.50	18.00	T06 T-25/3*
MM GRIT18K317-020-3T6	17.70	3.17	3.80	3	0.20	18.00	T06 T-25/3*
