Продолжение

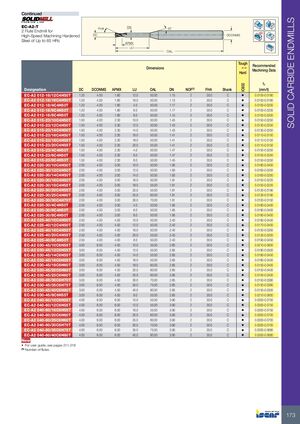

КОНЦЕВЫЕ ФРЕЗЫ ИЗ ТВЕРДОГО СПЛАВА

EC-A2-T — фреза концевая двухзубая для высокоскоростной обработки закаленной стали твердостью до 65 HRc

Обозначение DC DCONMS APMX LU OAL DN NOF(1) FHA Хвостовик IC602 fz (мм/т) Рекомендуемые параметры обработки
EC-A2 012-18/12C4H50T1.204.001.8012.050.001.15230.0C•0.0100–0.0180
EC-A2 012-18/16C4H50T1.204.001.8016.050.001.13230.0C•0.0100–0.0180
EC-A2 012-18/4C4H50T1.204.001.804.050.001.17230.0C•0.0100–0.0200
EC-A2 012-18/6C4H50T1.204.001.806.050.001.17230.0C•0.0100–0.0200
EC-A2 012-18/8C4H50T1.204.001.808.050.001.15230.0C•0.0100–0.0200
EC-A2 015-23/10C4H50T1.504.002.3010.050.001.45230.0C•0.0150–0.0250
EC-A2 015-23/12C4H50T1.504.002.3012.050.001.43230.0C•0.0130–0.0250
EC-A2 015-23/14C4H50T1.504.002.3014.050.001.43230.0C•0.0130–0.0250
EC-A2 015-23/16C4H50T1.504.002.3016.050.001.41230.0C•0.0110–0.0150
EC-A2 015-23/18C4H55T1.504.002.3018.055.001.41230.0C•0.0110–0.0150
EC-A2 015-23/20C4H55T1.504.002.3020.055.001.41230.0C•0.0110–0.0150
EC-A2 015-23/4C4H50T1.504.002.304.050.001.47230.0C•0.0150–0.0250
EC-A2 015-23/6C4H50T1.504.002.306.050.001.47230.0C•0.0150–0.0250
EC-A2 015-23/8C4H50T1.504.002.308.050.001.45230.0C•0.0150–0.0250
EC-A2 020-30/10C4H50T2.004.003.0010.050.001.95230.0C•0.0180–0.0400
EC-A2 020-30/12C4H50T2.004.003.0012.050.001.93230.0C•0.0160–0.0250
EC-A2 020-30/14C4H50T2.004.003.0014.050.001.93230.0C•0.0160–0.0250
EC-A2 020-30/16C4H50T2.004.003.0016.050.001.91230.0C•0.0150–0.0220
EC-A2 020-30/18C4H55T2.004.003.0018.055.001.91230.0C•0.0150–0.0220
EC-A2 020-30/20C4H55T2.004.003.0020.055.001.91230.0C•0.0130–0.0190
EC-A2 020-30/25C4H60T2.004.003.0025.060.001.91230.0C•0.0130–0.0190
EC-A2 020-30/30C4H70T2.004.003.0030.070.001.91230.0C•0.0100–0.0150
EC-A2 020-30/4C4H50T2.004.003.004.050.001.95230.0C•0.0180–0.0400
EC-A2 020-30/6C4H50T2.004.003.006.050.001.95230.0C•0.0180–0.0400
EC-A2 020-30/8C4H50T2.004.003.008.050.001.95230.0C•0.0180–0.0400
EC-A2 025-40/10C4H50T2.504.004.0010.050.002.40230.0C•0.0190–0.0450
EC-A2 025-40/12C4H50T2.504.004.0012.050.002.40230.0C•0.0170–0.0400
EC-A2 025-40/16C4H50T2.504.004.0016.050.002.40230.0C•0.0150–0.0300
EC-A2 025-40/20C4H55T2.504.004.0020.055.002.40230.0C•0.0130–0.0200
EC-A2 025-40/8C4H50T2.504.004.008.050.002.40230.0C•0.0190–0.0450
EC-A2 030-45/10C6H55T3.006.004.5010.055.002.85230.0C•0.0210–0.0600
EC-A2 030-45/12C6H55T3.006.004.5012.055.002.85230.0C•0.0180–0.0500
EC-A2 030-45/14C6H55T3.006.004.5014.055.002.85230.0C•0.0180–0.0450
EC-A2 030-45/16C6H55T3.006.004.5016.055.002.85230.0C•0.0180–0.0450
EC-A2 030-45/18C6H60T3.006.004.5018.060.002.85230.0C•0.0150–0.0400
EC-A2 030-45/20C6H60T3.006.004.5020.060.002.85230.0C•0.0150–0.0400
EC-A2 030-45/25C6H60T3.006.004.5025.060.002.85230.0C•0.0150–0.0400
EC-A2 030-45/30C6H70T3.006.004.5030.070.002.85230.0C•0.0150–0.0380
EC-A2 030-45/35C6H75T3.006.004.5035.075.002.85230.0C•0.0150–0.0380
EC-A2 030-45/40C6H80T3.006.004.5040.080.002.85230.0C•0.0150–0.0300
EC-A2 030-45/8C6H55T3.006.004.508.055.002.85230.0C•0.0210–0.0600
EC-A2 040-60/10C6H55T4.006.006.0010.055.003.90230.0C•0.0300–0.0750
EC-A2 040-60/12C6H55T4.006.006.0012.055.003.90230.0C•0.0300–0.0750
EC-A2 040-60/16C6H55T4.006.006.0016.055.003.90230.0C•0.0300–0.0750
EC-A2 040-60/20C6H60T4.006.006.0020.060.003.90230.0C•0.0300–0.0700
EC-A2 040-60/25C6H60T4.006.006.0025.060.003.90230.0C•0.0300–0.0700
EC-A2 040-60/30C6H70T4.006.006.0030.070.003.90230.0C•0.0300–0.0700
EC-A2 040-60/35C6H75T4.006.006.0035.075.003.90230.0C•0.0300–0.0680
EC-A2 040-60/40C6H80T4.006.006.0040.080.003.90230.0C•0.0300–0.0680

Новое

  • Руководство пользователя см. на стр. 211–218
  • (1) Количество зубьев
