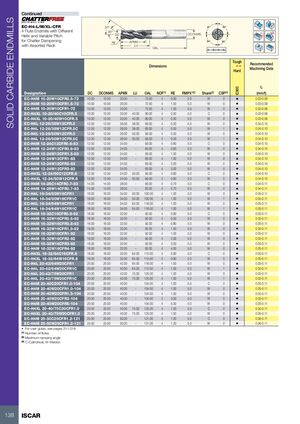

EC-H4-L/M/XL-CFR (продолжение)

Четырехзубые фрезы с различной спиралью и переменным шагом для подавления вибраций с ассортиментом радиусов

Рекомендуемые режимы резания

Обозначение DC DCONMS APMX LU OAL Зубьев RE RMPX° Хвостовик CSP IC900 fz (мм/зуб)
EC-H4M 10-20W10CFR0.5-72 10.00 10.00 20.00 — 72.00 4 0.50 5.0 W 0 • 0.03–0.09
EC-H4M 10-20W10CFR1.5-72 10.00 10.00 20.00 — 72.00 4 1.50 5.0 W 0 • 0.03–0.09
EC-H4M 10-20W10CFR1-72 10.00 10.00 20.00 — 72.00 4 1.00 5.0 W 0 • 0.03–0.09
EC-H4XL 10-20/40C10CFR.5 10.00 10.00 20.00 40.00 80.00 4 0.50 5.0 C 0 • 0.03–0.09
EC-H4XL 10-20/40W10CFR.5 10.00 10.00 20.00 40.00 80.00 4 0.50 5.0 W 0 • 0.03–0.09
EC-H4L 12-26/38W12CFR.5 12.00 12.00 26.00 38.00 83.00 4 0.50 5.0 W 0 • 0.04–0.10
EC-H4L 12-26/38W12CFR.5C 12.00 12.00 26.00 38.00 83.00 4 0.50 5.0 W 1 • 0.04–0.10
EC-H4L 12-26/50W12CFR.5 12.00 12.00 26.00 50.00 95.00 4 0.50 5.0 W 0 • 0.04–0.10
EC-H4L 12-26/50W12CFR.5C 12.00 12.00 26.00 50.00 95.00 4 0.50 5.0 W 1 • 0.04–0.10
EC-H4M 12-24C12CFR0.6-83 12.00 12.00 24.00 — 83.00 4 0.60 5.0 C 0 • 0.04–0.10
EC-H4M 12-24W12CFR0.6-83 12.00 12.00 24.00 — 83.00 4 0.60 5.0 W 0 • 0.04–0.10
EC-H4M 12-24W12CFR1.5-83 12.00 12.00 24.00 — 83.00 4 1.50 5.0 W 0 • 0.04–0.10
EC-H4M 12-24W12CFR1-83 12.00 12.00 24.00 — 83.00 4 1.00 5.0 W 0 • 0.04–0.10
EC-H4M 12-24W12CFR2-83 12.00 12.00 24.00 — 83.00 4 2.00 5.0 W 0 • 0.04–0.10
EC-H4M 12-24W12CFR3-83 12.00 12.00 24.00 — 83.00 4 3.00 5.0 W 0 • 0.04–0.10
EC-H4XL 12-24/50C12CFR.6 12.00 12.00 24.00 50.00 95.00 4 0.60 5.0 C 0 • 0.04–0.10
EC-H4XL 12-24/50W12CFR.6 12.00 12.00 24.00 50.00 95.00 4 0.60 5.0 W 0 • 0.04–0.10
EC-H4M 14-28C14CFR0.7-83 14.00 14.00 28.00 — 83.00 4 0.70 5.0 C 0 • 0.04–0.11
EC-H4M 14-28W14CFR0.7-83 14.00 14.00 28.00 — 83.00 4 0.70 5.0 W 0 • 0.04–0.11
EC-H4L 16-34/50W16CFR1 16.00 16.00 34.00 50.00 100.00 4 1.00 5.0 W 0 • 0.05–0.11
EC-H4L 16-34/50W16CFR1C 16.00 16.00 34.00 50.00 100.00 4 1.00 5.0 W 1 • 0.05–0.11
EC-H4L 16-34/64W16CFR1 16.00 16.00 34.00 64.00 116.00 4 1.00 5.0 W 0 • 0.05–0.11
EC-H4L 16-34/64W16CFR1C 16.00 16.00 34.00 64.00 116.00 4 1.00 5.0 W 1 • 0.05–0.11
EC-H4M 16-32C16CFR0.8-92 16.00 16.00 32.00 — 92.00 4 0.80 5.0 C 0 • 0.05–0.11
EC-H4M 16-32W16CFR0.5-92 16.00 16.00 32.00 — 92.00 4 0.50 5.0 W 0 • 0.05–0.11
EC-H4M 16-32W16CFR0.8-92 16.00 16.00 32.00 — 92.00 4 0.80 5.0 W 0 • 0.05–0.11
EC-H4M 16-32W16CFR1.5-92 16.00 16.00 32.00 — 92.00 4 1.50 5.0 W 0 • 0.05–0.11
EC-H4M 16-32W16CFR1-92 16.00 16.00 32.00 — 92.00 4 1.00 5.0 W 0 • 0.05–0.11
EC-H4M 16-32W16CFR2-92 16.00 16.00 32.00 — 92.00 4 2.00 5.0 W 0 • 0.05–0.11
EC-H4M 16-32W16CFR3-92 16.00 16.00 32.00 — 92.00 4 3.00 5.0 W 0 • 0.05–0.11
EC-H4M 16-32W16CFR4-92 16.00 16.00 32.00 — 92.00 4 4.00 5.0 W 0 • 0.05–0.11
EC-H4XL 16-32/64C16CFR.8 16.00 16.00 32.00 64.00 115.00 4 0.80 5.0 C 0 • 0.05–0.11
EC-H4XL 16-32/64W16CFR.8 16.00 16.00 32.00 64.00 115.00 4 0.80 5.0 W 0 • 0.05–0.11
EC-H4L 20-42/64W20CFR1 20.00 20.00 42.00 64.00 116.00 4 1.00 5.0 W 0 • 0.05–0.11
EC-H4L 20-42/64W20CFR1C 20.00 20.00 42.00 64.00 112.00 4 1.00 5.0 W 1 • 0.05–0.11
EC-H4L 20-42/75W20CFR1 20.00 20.00 42.00 75.00 125.00 4 1.00 5.0 W 0 • 0.05–0.11
EC-H4L 20-42/75W20CFR1C 20.00 20.00 42.00 75.00 125.00 4 1.00 5.0 W 1 • 0.05–0.11
EC-H4M 20-40C20CFR1.0-104 20.00 20.00 40.00 — 104.00 4 1.00 5.0 C 0 • 0.05–0.11
EC-H4M 20-40W20CFR1.0-104 20.00 20.00 40.00 — 104.00 4 1.00 5.0 W 0 • 0.05–0.11
EC-H4M 20-40W20CFR1.5-104 20.00 20.00 40.00 — 104.00 4 1.50 5.0 W 0 • 0.05–0.11
EC-H4M 20-40W20CFR3-104 20.00 20.00 40.00 — 104.00 4 3.00 5.0 W 0 • 0.05–0.11
EC-H4M 20-40W20CFR5-104 20.00 20.00 40.00 — 104.00 4 5.00 5.0 W 0 • 0.05–0.11
EC-H4XL 20-40/75C20CFR1.0 20.00 20.00 40.00 75.00 125.00 4 1.00 5.0 C 0 • 0.05–0.11
EC-H4XL 20-40/75W20CFR1.0 20.00 20.00 40.00 75.00 125.00 4 1.00 5.0 W 0 • 0.05–0.11
EC-H4M 25-50C25CFR1.2-121 25.00 25.00 50.00 — 121.00 4 1.20 5.0 C 0 • 0.06–0.11
EC-H4M 25-50W25CFR1.2-121 25.00 25.00 50.00 — 121.00 4 1.20 5.0 W 0 • 0.06–0.11

Примечания:

  • (1) Количество зубьев
  • (2) Максимальный угол врезания
  • (3) C — цилиндрический хвостовик, W — Weldon
  • (4) 0 — без подвода охлаждающей жидкости, 1 — с подводом охлаждающей жидкости
