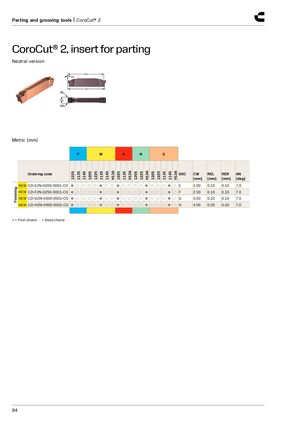

Пластины CoroCut® 2 для отрезки
Пластина для отрезки, нейтральное исполнение
Чистовая обработка
| Артикул | Применение | SSC [мм] | CW [мм] | REL [мм] | RER [град] | AN [мм] |
|---|---|---|---|---|---|---|
| NEW C2I-E2N-0200-0001-CO | E | 2.00 | 0.10 | 0.10 | 7.0 | |
| NEW C2I-F2N-0250-0001-CO | F | 2.50 | 0.10 | 0.10 | 7.0 | |
| NEW C2I-G2N-0300-0001-CO | G | 3.00 | 0.10 | 0.10 | 7.0 | |
| NEW C2I-H2N-0400-0002-CO | H | 4.00 | 0.20 | 0.20 | 7.0 |
● = Первый выбор ○ = Хороший выбор
