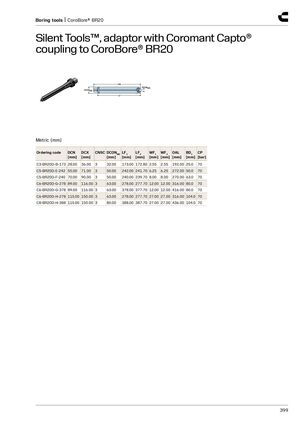

Инструменты расточки | CoroBore® BR20
Silent Tools™, адаптер с муфтой Coromant Capto® для CoroBore® BR20
Метрические размеры (мм)
| Артикул | DCN [мм] | DCX [мм] | CNSC | DCONMS [мм] | LF 1 [мм] | LF 2 [мм] | WF 1 [мм] | WF 2 [мм] | OAL [мм] | BD 1 [мм] | CP [бар] |
|---|---|---|---|---|---|---|---|---|---|---|---|
| C3-BR20D-B-173 | 28.00 | 36.00 | 3 | 32.00 | 173.00 | 172.80 | 2.55 | 2.55 | 192.00 | 25.0 | 70 |
| C5-BR20D-E-242 | 55.00 | 71.00 | 3 | 50.00 | 242.00 | 241.70 | 6.25 | 6.25 | 272.00 | 50.0 | 70 |
| C5-BR20D-F-240 | 70.00 | 90.00 | 3 | 50.00 | 240.00 | 239.70 | 8.00 | 8.00 | 270.00 | 63.0 | 70 |
| C6-BR20D-G-278 | 89.00 | 116.00 | 3 | 63.00 | 278.00 | 277.70 | 12.00 | 12.00 | 316.00 | 80.0 | 70 |
| C6-BR20D-G-378 | 89.00 | 116.00 | 3 | 63.00 | 378.00 | 377.70 | 12.00 | 12.00 | 416.00 | 80.0 | 70 |
| C6-BR20D-H-278 | 115.00 | 150.00 | 3 | 63.00 | 278.00 | 277.70 | 27.00 | 27.00 | 316.00 | 104.0 | 70 |
| C8-BR20D-H-388 | 115.00 | 150.00 | 3 | 80.00 | 388.00 | 387.70 | 27.00 | 27.00 | 436.00 | 104.0 | 70 |
