Держатели инструмента и адаптеры | Адаптеры для токарных инструментов

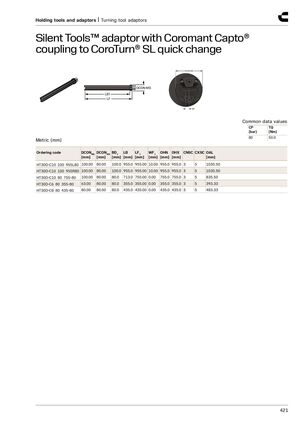

Адаптер Silent Tools™ с муфтой Coromant Capto® к CoroTurn® SL быстрой смены
| Артикул | DCONMS [мм] | DCONWS [мм] | BD 1 [мм] | LB [мм] | LF 1 [мм] | WF 1 [мм] | OHN [мм] | OHX [мм] | CNSC | CXSC | OAL [мм] |
|---|---|---|---|---|---|---|---|---|---|---|---|
| HT30D-C10 100 955L80 | 100,00 | 80,00 | 100,0 | 955,0 | 955,00 | 10,00 | 955,0 | 955,0 | 3 | 5 | 1035,50 |
| HT30D-C10 100 955R80 | 100,00 | 80,00 | 100,0 | 955,0 | 955,00 | 10,00 | 955,0 | 955,0 | 3 | 5 | 1035,50 |
| HT30D-C10 80 755-80 | 100,00 | 80,00 | 80,0 | 713,0 | 755,00 | 0,00 | 755,0 | 755,0 | 3 | 5 | 835,50 |
| HT30D-C6 80 355-80 | 63,00 | 80,00 | 80,0 | 355,0 | 355,00 | 0,00 | 355,0 | 355,0 | 3 | 5 | 393,33 |
| HT30D-C8 80 435-80 | 80,00 | 80,00 | 80,0 | 435,0 | 435,00 | 0,00 | 435,0 | 435,0 | 3 | 5 | 483,33 |
Общие характеристики: CP [бар] = 80, TQ [Нм] = 50,0
