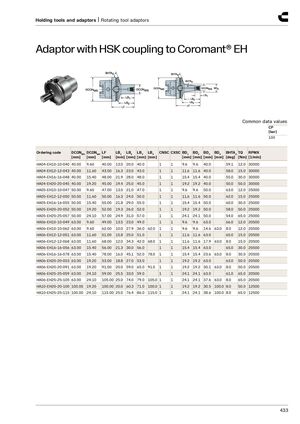

Holding tools and adaptors | Rotating tool adaptors Adaptor with HSK coupling to Coromant® EH Common data values CP [bar] 100 Ordering code DCONMS DCONWS LF LB 1 LB 2 LB 3 LB 4 _ _ _ _ CNSC CXSC BD 1 BD 2 BD 3 BD 4 BHTA 2 TQ _ _ _ _ RPMX _ [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [deg] [Nm] [1/min] HA04-EH10-10-040 40.00 9.60 40.00 13.0 20.0 40.0 1 1 9.6 9.6 40.0 59.1 12.0 30000 HA04-EH12-12-043 40.00 11.60 43.00 16.3 23.0 43.0 1 1 11.6 11.6 40.0 58.0 15.0 30000 HA04-EH16-16-048 40.00 15.40 48.00 21.9 28.0 48.0 1 1 15.4 15.4 40.0 55.0 30.0 30000 HA04-EH20-20-045 40.00 19.20 45.00 19.4 25.0 45.0 1 1 19.2 19.2 40.0 50.0 50.0 30000 HA05-EH10-10-047 50.00 9.60 47.00 13.0 21.0 47.0 1 1 9.6 9.6 50.0 63.0 12.0 25000 HA05-EH12-12-050 50.00 11.60 50.00 16.3 24.0 50.0 1 1 11.6 11.6 50.0 62.0 15.0 25000 HA05-EH16-16-055 50.00 15.40 55.00 21.8 29.0 55.0 1 1 15.4 15.4 50.0 60.0 30.0 25000 HA05-EH20-20-052 50.00 19.20 52.00 19.3 26.0 52.0 1 1 19.2 19.2 50.0 58.0 50.0 25000 HA05-EH25-25-057 50.00 24.10 57.00 24.9 31.0 57.0 1 1 24.1 24.1 50.0 54.0 65.0 25000 HA06-EH10-10-049 63.00 9.60 49.00 13.5 23.0 49.0 1 1 9.6 9.6 63.0 66.0 12.0 20500 HA06-EH10-10-062 63.00 9.60 62.00 10.0 27.9 36.0 62.0 1 1 9.6 9.6 14.6 63.0 8.0 12.0 20500 HA06-EH12-12-051 63.00 11.60 51.00 15.8 25.0 51.0 1 1 11.6 11.6 63.0 65.0 15.0 20500 HA06-EH12-12-068 63.00 11.60 68.00 12.0 34.3 42.0 68.0 1 1 11.6 11.6 17.9 63.0 8.0 15.0 20500 HA06-EH16-16-056 63.00 15.40 56.00 21.3 30.0 56.0 1 1 15.4 15.4 63.0 65.0 30.0 20500 HA06-EH16-16-078 63.00 15.40 78.00 16.0 45.1 52.0 78.0 1 1 15.4 15.4 23.6 63.0 8.0 30.0 20500 HA06-EH20-20-053 63.00 19.20 53.00 18.8 27.0 53.0 1 1 19.2 19.2 63.0 63.0 50.0 20500 HA06-EH20-20-091 63.00 19.20 91.00 20.0 59.0 65.0 91.0 1 1 19.2 19.2 30.1 63.0 8.0 50.0 20500 HA06-EH25-25-059 63.00 24.10 59.00 25.5 33.0 59.0 1 1 24.1 24.1 63.0 61.0 65.0 20500 HA06-EH25-25-105 63.00 24.10 105.00 25.0 74.0 79.0 105.0 1 1 24.1 24.1 37.6 63.0 8.0 65.0 20500 HA10-EH20-20-100 100.00 19.20 100.00 20.0 60.3 71.0 100.0 1 1 19.2 19.2 30.5 100.0 8.0 50.0 12500 HA10-EH25-25-115 100.00 24.10 115.00 25.0 76.4 86.0 115.0 1 1 24.1 24.1 38.6 100.0 8.0 65.0 12500 433
