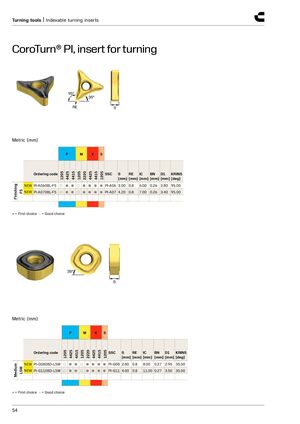

Turning tools | Indexable turning inserts CoroTurn® PI, insert for turning 95° 35° RE S Metric (mm) P M K S 1205 4425 4415 1205 2220 4425 4415 1205 Ordering code SSC S RE IC BN D1 KRINS [mm] [mm] [mm] [mm] [mm] [deg] NEW PI-A0608L-F5 ○ ● ● ○ ● ● ● ● PI-A06 3.00 0.8 6.00 0.26 2.80 95.00 Finishing ○ ● ● ○ ● ● ● ● PI-A07 4.20 0.8 F5 NEW PI-A0708L-F5 7.00 0.26 3.40 95.00 ● = First choice ○ = Good choice 35° S Metric (mm) P M K S 1205 4425 4415 1205 2220 4425 4415 1205 Ordering code SSC S RE IC BN D1 KRINS [mm] [mm] [mm] [mm] [mm] [deg] NEW PI-G0808D-L5W ○ ● ● ○ ● ● ● ● PI-G08 2.80 0.8 8.00 0.27 2.95 35.00 Medium ○ ● ● ○ ● ● ● ● PI-G11 4.00 0.8 L5W NEW PI-G1108D-L5W 11.00 0.27 3.50 35.00 ● = First choice ○ = Good choice 54
