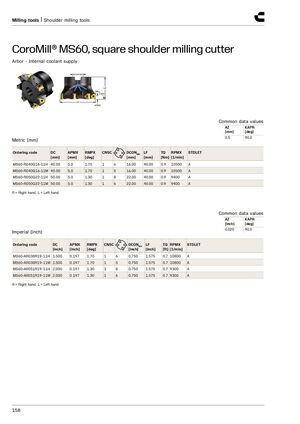

Milling tools | Shoulder milling tools CoroMill® MS60, square shoulder milling cutter Arbor - Internal coolant supply DCON MS LF KAPR DC APMX Common data values AZ KAPR [mm] [deg] 0.5 90.0 Metric (mm) Ordering code DC APMX RMPX CNSC DCONMS LF TQ RPMX STDLET [mm] [mm] [deg] [mm] [mm] [Nm] [1/min] MS60-R040Q16-11H 40.00 5.0 1.70 1 6 16.00 40.00 0.9 10500 A MS60-R040Q16-11M 40.00 5.0 1.70 1 5 16.00 40.00 0.9 10500 A MS60-R050Q22-11H 50.00 5.0 1.30 1 8 22.00 40.00 0.9 9400 A MS60-R050Q22-11M 50.00 5.0 1.30 1 6 22.00 40.00 0.9 9400 A R = Right hand, L = Left hand Common data values AZ KAPR [inch] [deg] 0.020 90.0 Imperial (inch) Ordering code DC APMX RMPX CNSC DCONMS LF TQ RPMX STDLET [inch] [inch] [deg] [inch] [inch] [ft] [1/min] MS60-AR038R19-11H 1.500 0.197 1.70 1 6 0.750 1.575 0.7 10800 A MS60-AR038R19-11M 1.500 0.197 1.70 1 5 0.750 1.575 0.7 10800 A MS60-AR051R19-11H 2.000 0.197 1.30 1 8 0.750 1.575 0.7 9300 A MS60-AR051R19-11M 2.000 0.197 1.30 1 6 0.750 1.575 0.7 9300 A R = Right hand, L = Left hand 158
