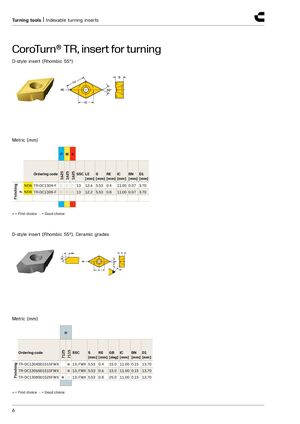

Инструменты для точения | Сменные пластины для точения
CoroTurn® TR, пластина для точения
D-образная пластина (ромб 55°)
Метрическая система (мм)
| P M K 1625 1625 1625 |
||||||||
| Код заказа | SSC | LE [мм] | S [мм] | RE [мм] | IC [мм] | BN [мм] | D1 [мм] | |
|---|---|---|---|---|---|---|---|---|
| NEW TR-DC1304-F | ● ○ ○ | 13 | 12.6 | 5.53 | 0.4 | 11.00 | 0.07 | 3.70 |
| Чистовая обработка F | ||||||||
| NEW TR-DC1308-F | ○ ○ ○ | 13 | 12.2 | 5.53 | 0.8 | 11.00 | 0.07 | 3.70 |
● = Первый выбор ○ = Хороший выбор
D-образная пластина (ромб 55°). Керамические марки
| H 7125 7115 |
|||||||||
| Код заказа | SSC | S [мм] | RE [мм] | GB [град] | IC [мм] | BN [мм] | D1 [мм] | ||
|---|---|---|---|---|---|---|---|---|---|
| TR-DC1304S01515FWX | ● | 13..FWX | 5.53 | 0.4 | 15.0 | 11.00 | 0.15 | 13.70 | |
| Чистовая обработка | |||||||||
| TR-DC1306S01515FWX | ● | 13..FWX | 5.53 | 0.6 | 15.0 | 11.00 | 0.15 | 13.70 | |
| TR-DC1308S01525FWX | ● ○ | 13..FWX | 5.53 | 0.8 | 25.0 | 11.00 | 0.15 | 13.70 | |
● = Первый выбор ○ = Хороший выбор
