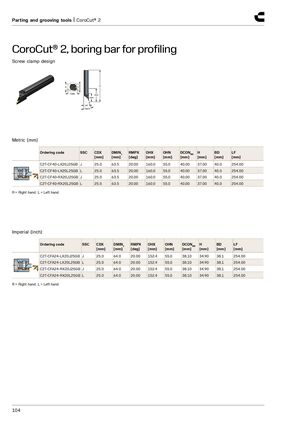

Инструменты отрезки и нарезания канавок | CoroCut® 2
CoroCut® 2, расточный резец для профилирования
Конструкция с винтовым зажимом
Метрические размеры (мм)
| Артикул | SSC | CDX [мм] | DMIN [мм] | RMPX [град] | OHX [мм] | OHN [мм] | DCONMS [мм] | H [мм] | BD [мм] | LF [мм] |
|---|---|---|---|---|---|---|---|---|---|---|
| C2T-CF40-LX20J25GB | J | 25.0 | 63.5 | 20.00 | 160.0 | 55.0 | 40.00 | 37.00 | 40.0 | 254.00 |
| C2T-CF40-LX20L25GB | L | 25.0 | 63.5 | 20.00 | 160.0 | 55.0 | 40.00 | 37.00 | 40.0 | 254.00 |
| C2T-CF40-RX20J25GB | J | 25.0 | 63.5 | 20.00 | 160.0 | 55.0 | 40.00 | 37.00 | 40.0 | 254.00 |
| C2T-CF40-RX20L25GB | L | 25.0 | 63.5 | 20.00 | 160.0 | 55.0 | 40.00 | 37.00 | 40.0 | 254.00 |
R = правая рука, L = левая рука
Размеры в дюймах
| Артикул | SSC | CDX [мм] | DMIN [мм] | RMPX [град] | OHX [мм] | OHN [мм] | DCONMS [мм] | H [мм] | BD [мм] | LF [мм] |
|---|---|---|---|---|---|---|---|---|---|---|
| C2T-CFA24-LX20J25GB | J | 25.0 | 64.0 | 20.00 | 152.4 | 55.0 | 38.10 | 34.90 | 38.1 | 254.00 |
| C2T-CFA24-LX20L25GB | L | 25.0 | 64.0 | 20.00 | 152.4 | 55.0 | 38.10 | 34.90 | 38.1 | 254.00 |
| C2T-CFA24-RX20J25GB | J | 25.0 | 64.0 | 20.00 | 152.4 | 55.0 | 38.10 | 34.90 | 38.1 | 254.00 |
| C2T-CFA24-RX20L25GB | L | 25.0 | 64.0 | 20.00 | 152.4 | 55.0 | 38.10 | 34.90 | 38.1 | 254.00 |
R = правая рука, L = левая рука
