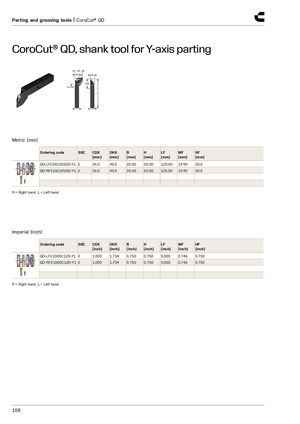

Инструменты отрезки и нарезания канавок | CoroCut® QD
CoroCut® QD, державка резца для отрезки по оси Y
Метрические размеры (мм)
| Артикул | SSC | CDX [мм] | OHX [мм] | B [мм] | H [мм] | LF [мм] | WF [мм] | HF [мм] |
|---|---|---|---|---|---|---|---|---|
| QD-LFE26C2020D-Y1 | E | 26.0 | 45.0 | 20.00 | 20.00 | 125.00 | 19.90 | 20.0 |
| QD-RFE26C2020D-Y1 | E | 26.0 | 45.0 | 20.00 | 20.00 | 125.00 | 19.90 | 20.0 |
R = правая рука, L = левая рука
Размеры в дюймах
| Артикул | SSC | CDX [дюймы] | OHX [дюймы] | B [дюймы] | H [дюймы] | LF [дюймы] | WF [дюймы] | HF [дюймы] |
|---|---|---|---|---|---|---|---|---|
| QD-LFE1000C12D-Y1 | E | 1.000 | 1.734 | 0.750 | 0.750 | 5.000 | 0.746 | 0.750 |
| QD-RFE1000C12D-Y1 | E | 1.000 | 1.734 | 0.750 | 0.750 | 5.000 | 0.746 | 0.750 |
R = правая рука, L = левая рука
