Инструменты фрезерования | Торцевые фрезы

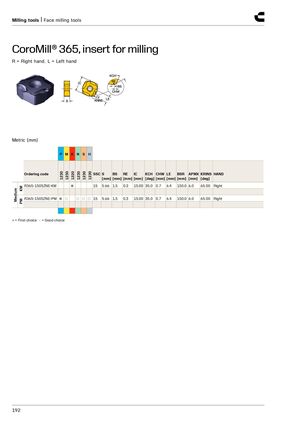

CoroMill® 365, пластина для фрезерования
П = Правое вращение, Л = Левое вращение
Метрические единицы (мм) | Среднее
| Артикул | P | M | K | N | S | H | SSC | S [мм] | BS [мм] | RE [мм] | IC [мм] | KCH [град] | CHW [мм] | LE [мм] | BSR [мм] | APMX [мм] | KRINS [град] | Направление |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| R365-1505ZNE-KM | ● | 15 | 5.66 | 1.5 | 0.3 | 15.00 | 35.0 | 0.7 | 6.4 | 150.0 | 6.0 | 65.00 | Правое | |||||
| R365-1505ZNE-PM | ● | ○ | ○ | ○ | 15 | 5.66 | 1.5 | 0.3 | 15.00 | 35.0 | 0.7 | 6.4 | 150.0 | 6.0 | 65.00 | Правое |
● = Первый выбор ○ = Хороший выбор
