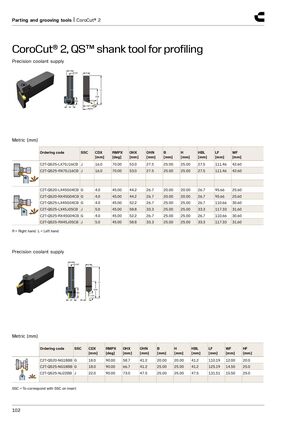

Инструменты отрезки и нарезания канавок | CoroCut® 2
CoroCut® 2, державка резца QS™ для профилирования
Прецизионная подача СОЖ
| Артикул | SSC | CDX [мм] | RMPX [град] | OHX [мм] | OHN [мм] | B [мм] | H [мм] | HBL [мм] | LF [мм] | WF [мм] |
|---|---|---|---|---|---|---|---|---|---|---|
| C2T-QS25-LX70J16CB | J | 16.0 | 70.00 | 53.0 | 27.5 | 25.00 | 25.00 | 27.5 | 111.46 | 42.60 |
| C2T-QS25-RX70J16CB | J | 16.0 | 70.00 | 53.0 | 27.5 | 25.00 | 25.00 | 27.5 | 111.46 | 42.60 |
| C2T-QS20-LX45G04CB | G | 4.0 | 45.00 | 44.2 | 26.7 | 20.00 | 20.00 | 26.7 | 95.66 | 25.60 |
| C2T-QS20-RX45G04CB | G | 4.0 | 45.00 | 44.2 | 26.7 | 20.00 | 20.00 | 26.7 | 95.66 | 25.60 |
| C2T-QS25-LX45G04CB | G | 4.0 | 45.00 | 52.2 | 26.7 | 25.00 | 25.00 | 26.7 | 110.66 | 30.60 |
| C2T-QS25-LX45J05CB | J | 5.0 | 45.00 | 58.8 | 33.3 | 25.00 | 25.00 | 33.3 | 117.33 | 31.60 |
| C2T-QS25-RX45G04CB | G | 4.0 | 45.00 | 52.2 | 26.7 | 25.00 | 25.00 | 26.7 | 110.66 | 30.60 |
| C2T-QS25-RX45J05CB | J | 5.0 | 45.00 | 58.8 | 33.3 | 25.00 | 25.00 | 33.3 | 117.33 | 31.60 |
Прецизионная подача СОЖ
| Артикул | SSC | CDX [мм] | RMPX [град] | OHX [мм] | OHN [мм] | B [мм] | H [мм] | HBL [мм] | LF [мм] | WF [мм] | HF [мм] |
|---|---|---|---|---|---|---|---|---|---|---|---|
| C2T-QS20-NG18BB | G | 18.0 | 90.00 | 58.7 | 41.2 | 20.00 | 20.00 | 41.2 | 110.19 | 12.00 | 20.0 |
| C2T-QS25-NG18BB | G | 18.0 | 90.00 | 66.7 | 41.2 | 25.00 | 25.00 | 41.2 | 125.19 | 14.50 | 25.0 |
| C2T-QS25-NJ22BB | J | 22.0 | 90.00 | 73.0 | 47.5 | 25.00 | 25.00 | 47.5 | 131.51 | 15.50 | 25.0 |
SSC = должен соответствовать SSC пластины
