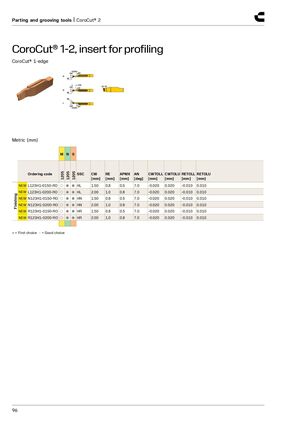

Инструменты отрезки и нарезания канавок | CoroCut® 2
CoroCut® 1-2, пластина для профилирования
CoroCut® 1-edge. Чистовая обработка
| Артикул | SSC | CW [мм] | RE [мм] | APMX [град] | AN [мм] | CWTOLL [мм] | CWTOLU [мм] | RETOLL [мм] | RETOLU [мм] |
|---|---|---|---|---|---|---|---|---|---|
| NEW L123H1-0150-RO | HL | 1.50 | 0.8 | 0.5 | 7.0 | -0.020 | 0.020 | -0.010 | 0.010 |
| NEW L123H1-0200-RO | HL | 2.00 | 1.0 | 0.8 | 7.0 | -0.020 | 0.020 | -0.010 | 0.010 |
| NEW N123H1-0150-RO | HN | 1.50 | 0.8 | 0.5 | 7.0 | -0.020 | 0.020 | -0.010 | 0.010 |
| NEW N123H1-0200-RO | HN | 2.00 | 1.0 | 0.8 | 7.0 | -0.020 | 0.020 | -0.010 | 0.010 |
| NEW R123H1-0150-RO | HR | 1.50 | 0.8 | 0.5 | 7.0 | -0.020 | 0.020 | -0.010 | 0.010 |
| NEW R123H1-0200-RO | HR | 2.00 | 1.0 | 0.8 | 7.0 | -0.020 | 0.020 | -0.010 | 0.010 |
● = Первый выбор ○ = Хороший выбор
