Инструменты отрезки и нарезания канавок | CoroCut® 2

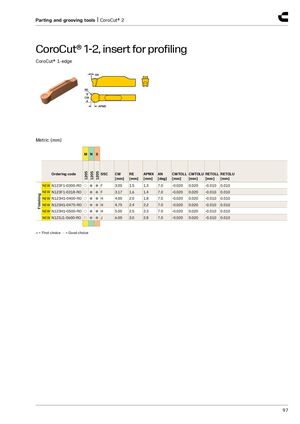

CoroCut® 1-2, пластина для профилирования
CoroCut® 1-edge. Чистовая обработка
| Артикул | SSC | CW [мм] | RE [мм] | APMX [град] | AN [мм] | CWTOLL [мм] | CWTOLU [мм] | RETOLL [мм] | RETOLU [мм] |
|---|---|---|---|---|---|---|---|---|---|
| NEW N123F1-0300-RO | F | 3.00 | 1.5 | 1.3 | 7.0 | -0.020 | 0.020 | -0.010 | 0.010 |
| NEW N123F1-0318-RO | F | 3.17 | 1.6 | 1.4 | 7.0 | -0.020 | 0.020 | -0.010 | 0.010 |
| NEW N123H1-0400-RO | H | 4.00 | 2.0 | 1.8 | 7.0 | -0.020 | 0.020 | -0.010 | 0.010 |
| NEW N123H1-0475-RO | H | 4.75 | 2.4 | 2.2 | 7.0 | -0.020 | 0.020 | -0.010 | 0.010 |
| NEW N123H1-0500-RO | H | 5.00 | 2.5 | 2.3 | 7.0 | -0.020 | 0.020 | -0.010 | 0.010 |
| NEW N123J1-0600-RO | J | 6.00 | 3.0 | 2.8 | 7.0 | -0.020 | 0.020 | -0.010 | 0.010 |
● = Первый выбор ○ = Хороший выбор
