Инструменты фрезерования | Инструменты фрезерования торцевых уступов

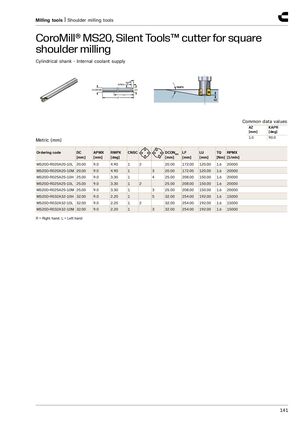

CoroMill® MS20, фреза Silent Tools™ для квадратного торцевого уступа
Цилиндрический хвостовик — внутренняя подача СОЖ
Метрические размеры (мм)
| Код заказа | DC [мм] | APMX [мм] | RMPX [град] | CNSC | DCONMS [мм] | LF [мм] | LU [мм] | TQ [Нм] | RPMX [1/мин] |
|---|---|---|---|---|---|---|---|---|---|
| MS20D-R020A20-10L | 20.00 | 9.0 | 4.90 | 1 + 2 | 20.00 | 172.00 | 120.00 | 1.6 | 20000 |
| MS20D-R020A20-10M | 20.00 | 9.0 | 4.90 | 1 + 3 | 20.00 | 172.00 | 120.00 | 1.6 | 20000 |
| MS20D-R025A25-10H | 25.00 | 9.0 | 3.30 | 1 + 4 | 25.00 | 208.00 | 150.00 | 1.6 | 20000 |
| MS20D-R025A25-10L | 25.00 | 9.0 | 3.30 | 1 + 2 | 25.00 | 208.00 | 150.00 | 1.6 | 20000 |
| MS20D-R025A25-10M | 25.00 | 9.0 | 3.30 | 1 + 3 | 25.00 | 208.00 | 150.00 | 1.6 | 20000 |
| MS20D-R032A32-10H | 32.00 | 9.0 | 2.20 | 1 + 5 | 32.00 | 254.00 | 192.00 | 1.6 | 15000 |
| MS20D-R032A32-10L | 32.00 | 9.0 | 2.20 | 1 + 2 | 32.00 | 254.00 | 192.00 | 1.6 | 15000 |
| MS20D-R032A32-10M | 32.00 | 9.0 | 2.20 | 1 + 3 | 32.00 | 254.00 | 192.00 | 1.6 | 15000 |
R = Правая, L = Левая
