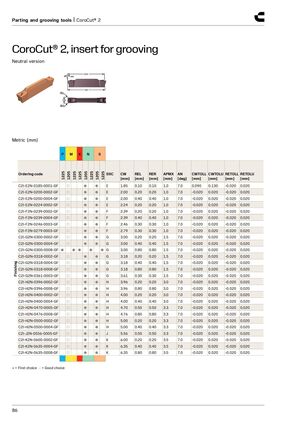

Пластины CoroCut® 2 для канавкообработки
Пластина для канавкообработки, нейтральное исполнение
Чистовая обработка
| Артикул | Применение | SSC [мм] | CW [мм] | REL [мм] | RER [мм] | APMX [мм] | AN [град] | CWTOLL [мм] | CWTOLU [мм] | RETOLL [мм] | RETOLU [мм] |
|---|---|---|---|---|---|---|---|---|---|---|---|
| C2I-E2N-0185-0001-GF | E | 1.85 | 0.10 | 0.10 | 1.0 | 7.0 | 0.090 | 0.130 | -0.020 | 0.020 | |
| C2I-E2N-0200-0002-GF | E | 2.00 | 0.20 | 0.20 | 1.0 | 7.0 | -0.020 | 0.020 | -0.020 | 0.020 | |
| C2I-E2N-0200-0004-GF | E | 2.00 | 0.40 | 0.40 | 1.0 | 7.0 | -0.020 | 0.020 | -0.020 | 0.020 | |
| C2I-E2N-0224-0002-GF | E | 2.24 | 0.20 | 0.20 | 1.0 | 7.0 | -0.020 | 0.020 | -0.020 | 0.020 | |
| C2I-F2N-0239-0002-GF | F | 2.39 | 0.20 | 0.20 | 1.0 | 7.0 | -0.020 | 0.020 | -0.020 | 0.020 | |
| C2I-F2N-0239-0004-GF | F | 2.39 | 0.40 | 0.40 | 1.0 | 7.0 | -0.020 | 0.020 | -0.020 | 0.020 | |
| C2I-F2N-0246-0003-GF | F | 2.46 | 0.30 | 0.30 | 1.0 | 7.0 | -0.020 | 0.020 | -0.020 | 0.020 | |
| C2I-F2N-0279-0003-GF | F | 2.79 | 0.30 | 0.30 | 1.0 | 7.0 | -0.020 | 0.020 | -0.020 | 0.020 | |
| C2I-G2N-0300-0002-GF | G | 3.00 | 0.20 | 0.20 | 1.5 | 7.0 | -0.020 | 0.020 | -0.020 | 0.020 | |
| C2I-G2N-0300-0004-GF | G | 3.00 | 0.40 | 0.40 | 1.5 | 7.0 | -0.020 | 0.020 | -0.020 | 0.020 | |
| C2I-G2N-0300-0008-GF | G | 3.00 | 0.80 | 0.80 | 1.5 | 7.0 | -0.020 | 0.020 | -0.020 | 0.020 | |
| C2I-G2N-0318-0002-GF | G | 3.18 | 0.20 | 0.20 | 1.5 | 7.0 | -0.020 | 0.020 | -0.020 | 0.020 | |
| C2I-G2N-0318-0004-GF | G | 3.18 | 0.40 | 0.40 | 1.5 | 7.0 | -0.020 | 0.020 | -0.020 | 0.020 | |
| C2I-G2N-0318-0008-GF | G | 3.18 | 0.80 | 0.80 | 1.5 | 7.0 | -0.020 | 0.020 | -0.020 | 0.020 | |
| C2I-G2N-0361-0003-GF | G | 3.61 | 0.30 | 0.30 | 1.5 | 7.0 | -0.020 | 0.020 | -0.020 | 0.020 | |
| C2I-H2N-0396-0002-GF | H | 3.96 | 0.20 | 0.20 | 3.0 | 7.0 | -0.020 | 0.020 | -0.020 | 0.020 | |
| C2I-H2N-0396-0008-GF | H | 3.96 | 0.80 | 0.80 | 3.0 | 7.0 | -0.020 | 0.020 | -0.020 | 0.020 | |
| C2I-H2N-0400-0002-GF | H | 4.00 | 0.20 | 0.20 | 3.0 | 7.0 | -0.020 | 0.020 | -0.020 | 0.020 | |
| C2I-H2N-0400-0004-GF | H | 4.00 | 0.40 | 0.40 | 3.0 | 7.0 | -0.020 | 0.020 | -0.020 | 0.020 | |
| C2I-H2N-0470-0005-GF | H | 4.70 | 0.50 | 0.50 | 3.3 | 7.0 | -0.020 | 0.020 | -0.020 | 0.020 | |
| C2I-H2N-0476-0008-GF | H | 4.76 | 0.80 | 0.80 | 3.3 | 7.0 | -0.020 | 0.020 | -0.020 | 0.020 | |
| C2I-H2N-0500-0002-GF | H | 5.00 | 0.20 | 0.20 | 3.3 | 7.0 | -0.020 | 0.020 | -0.020 | 0.020 | |
| C2I-H2N-0500-0004-GF | H | 5.00 | 0.40 | 0.40 | 3.3 | 7.0 | -0.020 | 0.020 | -0.020 | 0.020 | |
| C2I-J2N-0556-0005-GF | J | 5.56 | 0.50 | 0.50 | 3.3 | 7.0 | -0.020 | 0.020 | -0.020 | 0.020 | |
| C2I-K2N-0600-0002-GF | K | 6.00 | 0.20 | 0.20 | 3.5 | 7.0 | -0.020 | 0.020 | -0.020 | 0.020 | |
| C2I-K2N-0635-0004-GF | K | 6.35 | 0.40 | 0.40 | 3.5 | 7.0 | -0.020 | 0.020 | -0.020 | 0.020 | |
| C2I-K2N-0635-0008-GF | K | 6.35 | 0.80 | 0.80 | 3.5 | 7.0 | -0.020 | 0.020 | -0.020 | 0.020 |
● = Первый выбор ○ = Хороший выбор
