Держатели инструмента и адаптеры | Адаптеры для токарных инструментов

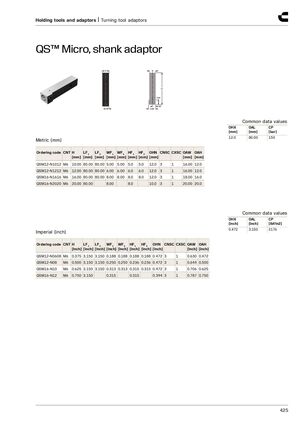

Адаптер QS™ Micro с хвостовиком
Размеры в миллиметрах
| Артикул | CNT | H [мм] | LF 1 [мм] | LF 2 [мм] | WF 1 [мм] | WF 2 [мм] | HF 1 [мм] | HF 2 [мм] | OHN [мм] | CNSC | CXSC | OAW [мм] | OAH [мм] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| QSM12-N1012 | M6 | 10,00 | 80,00 | 80,00 | 5,00 | 5,00 | 5,0 | 5,0 | 12,0 | 3 | 1 | 16,00 | 12,0 |
| QSM12-N1212 | M6 | 12,00 | 80,00 | 80,00 | 6,00 | 6,00 | 6,0 | 6,0 | 12,0 | 3 | 1 | 16,00 | 12,0 |
| QSM16-N1616 | M6 | 16,00 | 80,00 | 80,00 | 8,00 | 8,00 | 8,0 | 8,0 | 12,0 | 3 | 1 | 18,00 | 16,0 |
| QSM16-N2020 | M6 | 20,00 | 80,00 | 80,00 | 8,00 | 8,00 | 8,0 | 10,0 | 12,0 | 3 | 1 | 20,00 | 20,0 |
Общие характеристики: OHX [мм] = 12,0, OAL [мм] = 80,00, CP [бар] = 150
Размеры в дюймах
| Артикул | CNT | H [дюйм] | LF 1 [дюйм] | LF 2 [дюйм] | WF 1 [дюйм] | WF 2 [дюйм] | HF 1 [дюйм] | HF 2 [дюйм] | OHN [дюйм] | CNSC | CXSC | OAW [дюйм] | OAH [дюйм] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| QSM12-N0608 | M6 | 0,375 | 3,150 | 3,150 | 0,188 | 0,188 | 0,188 | 0,188 | 0,472 | 3 | 1 | 0,630 | 0,472 |
| QSM12-N08 | M6 | 0,500 | 3,150 | 3,150 | 0,250 | 0,250 | 0,236 | 0,236 | 0,472 | 3 | 1 | 0,644 | 0,500 |
| QSM16-N10 | M6 | 0,625 | 3,150 | 3,150 | 0,313 | 0,313 | 0,315 | 0,315 | 0,472 | 3 | 1 | 0,706 | 0,625 |
| QSM16-N12 | M6 | 0,750 | 3,150 | 3,150 | 0,315 | 0,315 | 0,315 | 0,394 | 0,472 | 3 | 1 | 0,787 | 0,750 |
Общие характеристики: OHX [дюйм] = 0,472, OAL [дюйм] = 3,150, CP [фунт-сила/дюйм²] = 2176
