Резцы для отрезки и нарезки канавок | CoroCut® XS

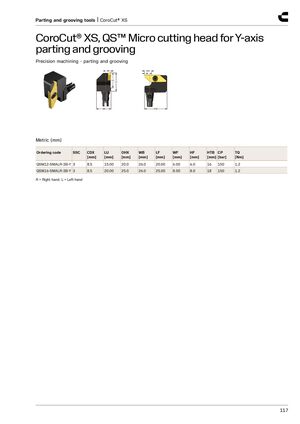

CoroCut® XS, микрорезец QS™ для отрезки и нарезки канавок на оси Y
Прецизионная обработка - отрезка и нарезка канавок
| Метрические размеры (мм) | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Код заказа | SSC | CDX [мм] | LU [мм] | OHX [мм] | WB [мм] | LF [мм] | WF [мм] | HF [мм] | HTB [мм] | CP [бар] | TQ [Нм] |
| QSM12-SMALR-3B-Y | 3 | 8.5 | 15.00 | 20.0 | 26.0 | 20.00 | 6.00 | 6.0 | 16 | 150 | 1.2 |
| QSM16-SMALR-3B-Y | 3 | 8.5 | 20.00 | 25.0 | 26.0 | 25.00 | 8.00 | 8.0 | 18 | 150 | 1.2 |
R = Правое вращение, L = Левое вращение
