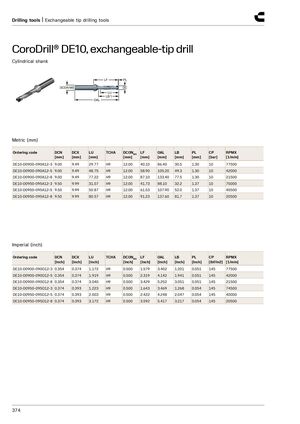

Буровые инструменты | Сверла с обменяемыми пластинами
CoroDrill® DE10, сверло с обменяемой пластиной
Цилиндрический хвостовик
Метрическая (мм)
| Артикул | DCN [мм] | DCX [мм] | LU [мм] | TCHA | DCONMS [мм] | LF [мм] | OAL [мм] | LB [мм] | PL [мм] | CP [bar] | RPMX [1/мин] |
|---|---|---|---|---|---|---|---|---|---|---|---|
| DE10-D0900-090A12-3 | 9.00 | 9.49 | 29.77 | H9 | 12.00 | 40.10 | 86.40 | 30.5 | 1.30 | 10 | 77500 |
| DE10-D0900-090A12-5 | 9.00 | 9.49 | 48.75 | H9 | 12.00 | 58.90 | 105.20 | 49.3 | 1.30 | 10 | 42000 |
| DE10-D0900-090A12-8 | 9.00 | 9.49 | 77.22 | H9 | 12.00 | 87.10 | 133.40 | 77.5 | 1.30 | 10 | 21500 |
| DE10-D0950-095A12-3 | 9.50 | 9.99 | 31.07 | H9 | 12.00 | 41.73 | 88.10 | 32.2 | 1.37 | 10 | 75000 |
| DE10-D0950-095A12-5 | 9.50 | 9.99 | 50.87 | H9 | 12.00 | 61.53 | 107.90 | 52.0 | 1.37 | 10 | 40500 |
| DE10-D0950-095A12-8 | 9.50 | 9.99 | 80.57 | H9 | 12.00 | 91.23 | 137.60 | 81.7 | 1.37 | 10 | 20500 |
Имперская (дюймы)
| Артикул | DCN [дюйм] | DCX [дюйм] | LU [дюйм] | TCHA | DCONMS [дюйм] | LF [дюйм] | OAL [дюйм] | LB [дюйм] | PL [дюйм] | CP [фунт-сила/дюйм²] | RPMX [1/мин] |
|---|---|---|---|---|---|---|---|---|---|---|---|
| DE10-D0900-090O12-3 | 0.354 | 0.374 | 1.172 | H9 | 0.500 | 1.579 | 3.402 | 1.201 | 0.051 | 145 | 77500 |
| DE10-D0900-090O12-5 | 0.354 | 0.374 | 1.919 | H9 | 0.500 | 2.319 | 4.142 | 1.941 | 0.051 | 145 | 42000 |
| DE10-D0900-090O12-8 | 0.354 | 0.374 | 3.040 | H9 | 0.500 | 3.429 | 5.252 | 3.051 | 0.051 | 145 | 21500 |
| DE10-D0950-095O12-3 | 0.374 | 0.393 | 1.223 | H9 | 0.500 | 1.643 | 3.469 | 1.268 | 0.054 | 145 | 74500 |
| DE10-D0950-095O12-5 | 0.374 | 0.393 | 2.003 | H9 | 0.500 | 2.422 | 4.248 | 2.047 | 0.054 | 145 | 40000 |
| DE10-D0950-095O12-8 | 0.374 | 0.393 | 3.172 | H9 | 0.500 | 3.592 | 5.417 | 3.217 | 0.054 | 145 | 20500 |
