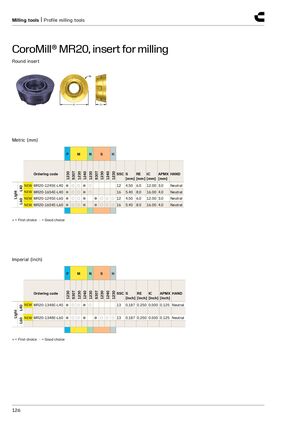

Фрезерные инструменты | Инструменты для профильного фрезерования
CoroMill® MR20, пластина для фрезерования
Круглая пластина
| Метрические размеры (мм) | ||||||
|---|---|---|---|---|---|---|
| Класс | P | M | N | S | H | |
| 1230 / 1230 / 1240 / 1230 / 1230 / 1240 / 1230 | ||||||
| Код заказа | SSC | S [мм] | RE [мм] | IC [мм] | APMX [мм] | HAND |
| L40 - Облегченная | ||||||
| NEW MR20-1245E-L40 ●○○●○ | 12 | 4.50 | 6.0 | 12.00 | 3.0 | Нейтральная |
| NEW MR20-1654E-L40 ●○○●○ | 16 | 5.40 | 8.0 | 16.00 | 4.0 | Нейтральная |
| L60 - Облегченная | ||||||
| NEW MR20-1245E-L60 ●○○●●○○○ | 12 | 4.50 | 6.0 | 12.00 | 3.0 | Нейтральная |
| NEW MR20-1654E-L60 ●○○●●○○○ | 16 | 5.40 | 8.0 | 16.00 | 4.0 | Нейтральная |
● = Первый выбор ○ = Хороший выбор
| Дюймовые размеры (дюймы) | ||||||
|---|---|---|---|---|---|---|
| Класс | P | M | N | S | H | |
| 1230 / 1230 / 1240 / 1230 / 1230 / 1240 / 1230 | ||||||
| Код заказа | SSC | S [дюйм] | RE [дюйм] | IC [дюйм] | APMX [дюйм] | HAND |
| L40 - Облегченная | ||||||
| NEW MR20-1348E-L40 ●○○●○ | 13 | 0.187 | 0.250 | 0.500 | 0.125 | Нейтральная |
| L60 - Облегченная | ||||||
| NEW MR20-1348E-L60 ●○○●●○○○ | 13 | 0.187 | 0.250 | 0.500 | 0.125 | Нейтральная |
● = Первый выбор ○ = Хороший выбор
