Фрезерные инструменты | Инструменты для профильного фрезерования

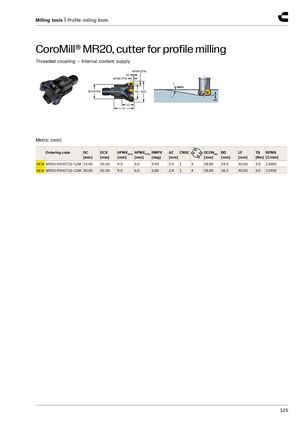

CoroMill® MR20, фреза для профильного фрезерования
Соединение с резьбой - Внутренняя подача СОЖ
| Метрические размеры (мм) | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Код заказа | DC [мм] | DCX [мм] | APMX EFW [мм] | APMX FFW [мм] | RMPX [град] | AZ [мм] | CNSC | DCONMS [мм] | BD [мм] | LF [мм] | TQ [Нм] | RPMX [об/мин] | |
| NEW MR20-R035T16-12M | 23.00 | 35.00 | 9.0 | 6.0 | 9.90 | 2.9 | 1 | 3 | 28.80 | 29.5 | 40.00 | 3.0 | 13000 |
| NEW MR20-R042T16-12M | 30.00 | 42.00 | 9.0 | 6.0 | 6.80 | 2.8 | 1 | 4 | 28.80 | 36.3 | 40.00 | 3.0 | 11900 |
