Цельные круглые инструменты | Инструменты фрезерования

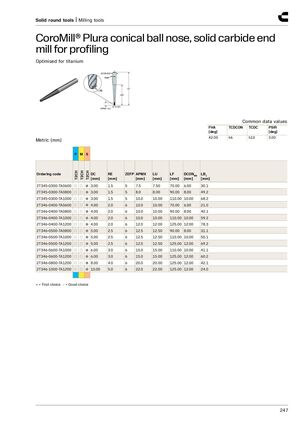

CoroMill® Plura коническая шаровидная фреза, твердосплавная концевая фреза для профилирования
Оптимизирована для титана
| Артикул | DC [мм] | RE [мм] | ZEFP | APMX [мм] | LU [мм] | LF [мм] | DCONMS [мм] | LB 1 [мм] |
|---|---|---|---|---|---|---|---|---|
| 2T345-0300-TA0600 | 3.00 | 1.5 | 5 | 7.5 | 7.50 | 70.00 | 6.00 | 30.1 |
| 2T345-0300-TA0800 | 3.00 | 1.5 | 5 | 8.0 | 8.00 | 90.00 | 8.00 | 49.2 |
| 2T345-0300-TA1000 | 3.00 | 1.5 | 5 | 10.0 | 10.00 | 110.00 | 10.00 | 68.2 |
| 2T346-0400-TA0600 | 4.00 | 2.0 | 6 | 10.0 | 10.00 | 70.00 | 6.00 | 21.0 |
| 2T346-0400-TA0800 | 4.00 | 2.0 | 6 | 10.0 | 10.00 | 90.00 | 8.00 | 40.1 |
| 2T346-0400-TA1000 | 4.00 | 2.0 | 6 | 10.0 | 10.00 | 110.00 | 10.00 | 59.2 |
| 2T346-0400-TA1200 | 4.00 | 2.0 | 6 | 12.0 | 12.00 | 125.00 | 12.00 | 78.3 |
| 2T346-0500-TA0800 | 5.00 | 2.5 | 6 | 12.5 | 12.50 | 90.00 | 8.00 | 31.1 |
| 2T346-0500-TA1000 | 5.00 | 2.5 | 6 | 12.5 | 12.50 | 110.00 | 10.00 | 50.1 |
| 2T346-0500-TA1200 | 5.00 | 2.5 | 6 | 12.5 | 12.50 | 125.00 | 12.00 | 69.2 |
| 2T346-0600-TA1000 | 6.00 | 3.0 | 6 | 15.0 | 15.00 | 110.00 | 10.00 | 41.1 |
| 2T346-0600-TA1200 | 6.00 | 3.0 | 6 | 15.0 | 15.00 | 125.00 | 12.00 | 60.2 |
| 2T346-0800-TA1200 | 8.00 | 4.0 | 6 | 20.0 | 20.00 | 125.00 | 12.00 | 42.1 |
| 2T346-1000-TA1200 | 10.00 | 5.0 | 6 | 22.0 | 22.00 | 125.00 | 12.00 | 24.0 |
