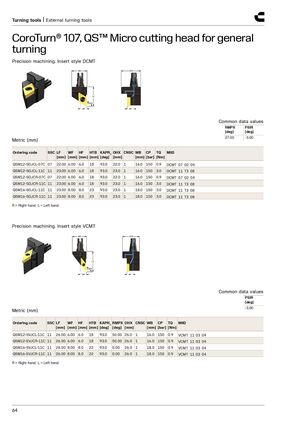

Инструменты расточки | Внешние инструменты расточки
CoroTurn® 107, микрорезец QS™ для общей расточки
Прецизионная обработка. Пластина стиля DCMT
| Общие значения параметров | |
|---|---|
| RMPX [градус] | PSIR [градус] |
| 27.00 | -3.00 |
Метрическая система (мм)
| Артикул заказа | SSC | LF [мм] | WF [мм] | HF [мм] | HTB [мм] | KAPR 1 [градус] | OHX [мм] | CNSC [бар] | WB [мм] | CP | TQ [Нм] | MIID | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| QSM12-SDJCL-07C | 07 | 22.00 | 6.00 | 6.0 | 18 | 93.0 | — | 22.0 | 1 | 16.0 | 150 | 0.9 | DCMT 07 02 04 |
| QSM12-SDJCL-11C | 11 | 23.00 | 6.00 | 6.0 | 18 | 93.0 | — | 23.0 | 1 | 16.0 | 150 | 3.0 | DCMT 11 T3 08 |
| QSM12-SDJCR-07C | 07 | 22.00 | 6.00 | 6.0 | 18 | 93.0 | — | 22.0 | 1 | 16.0 | 150 | 0.9 | DCMT 07 02 04 |
| QSM12-SDJCR-11C | 11 | 23.00 | 6.00 | 6.0 | 18 | 93.0 | — | 23.0 | 1 | 16.0 | 150 | 3.0 | DCMT 11 T3 08 |
| QSM16-SDJCL-11C | 11 | 23.00 | 8.00 | 8.0 | 23 | 93.0 | — | 23.0 | 1 | 18.0 | 150 | 3.0 | DCMT 11 T3 08 |
| QSM16-SDJCR-11C | 11 | 23.00 | 8.00 | 8.0 | 23 | 93.0 | — | 23.0 | 1 | 18.0 | 150 | 3.0 | DCMT 11 T3 08 |
П = правое вращение, Л = левое вращение
Прецизионная обработка. Пластина стиля VCMT
| Общие значения параметров |
|---|
| PSIR [градус] |
| -3.00 |
Метрическая система (мм)
| Артикул заказа | SSC | LF [мм] | WF [мм] | HF [мм] | HTB [мм] | KAPR 1 [градус] | RMPX [градус] | OHX [мм] | CNSC [бар] | WB [мм] | CP | TQ [Нм] | MIID | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| QSM12-SVJCL-11C | 11 | 26.00 | 6.00 | 6.0 | 18 | 93.0 | — | 50.00 | 26.0 | 1 | 16.0 | 150 | 0.9 | VCMT 11 03 04 |
| QSM12-SVJCR-11C | 11 | 26.00 | 6.00 | 6.0 | 18 | 93.0 | — | 50.00 | 26.0 | 1 | 16.0 | 150 | 0.9 | VCMT 11 03 04 |
| QSM16-SVJCL-11C | 11 | 26.00 | 8.00 | 8.0 | 22 | 93.0 | 0.00 | — | 26.0 | 1 | 18.0 | 150 | 0.9 | VCMT 11 03 04 |
| QSM16-SVJCR-11C | 11 | 26.00 | 8.00 | 8.0 | 22 | 93.0 | 0.00 | — | 26.0 | 1 | 18.0 | 150 | 0.9 | VCMT 11 03 04 |
П = правое вращение, Л = левое вращение
