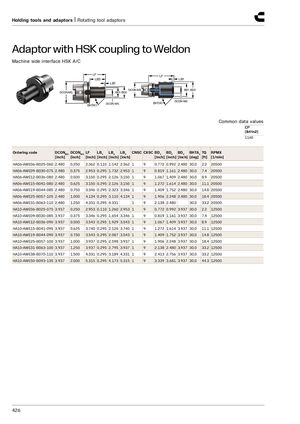

Holding tools and adaptors | Rotating tool adaptors Adaptor with HSK coupling to Weldon​​ Machine side interface HSK A/C LF LF LB2 LB1 LB1 DCON MS BD1 BD2 DCON MS BD1 BD2 DCON WS DCON WS BHTA1 BHTA1 Common data values CP [lbf/in2] 1160 ​ Ordering code DCONMS DCONWS LF LB 1 _LB 2 _LB 3 CNSC CXSC BD 1 BD 2 BD 3 BHTA 1 TQ _ _ _ _ _ RPMX [inch] [inch] [inch] [inch] [inch] [inch] [inch] [inch] [inch] [deg] [ft] [1/min] HA06-AWE06-B025-060 2.480 0.250 2.362 0.110 1.142 2.362 1 9 0.772 0.992 2.480 30.0 2.2 20500 HA06-AWE09-B030-075 2.480 0.375 2.953 0.295 1.732 2.953 1 9 0.819 1.161 2.480 30.0 7.4 20500 HA06-AWE12-B036-080 2.480 0.500 3.150 0.295 2.126 3.150 1 9 1.067 1.409 2.480 30.0 8.9 20500 HA06-AWE15-B041-080 2.480 0.625 3.150 0.295 2.126 3.150 1 9 1.272 1.614 2.480 30.0 11.1 20500 HA06-AWE19-B044-085 2.480 0.750 3.346 0.295 2.323 3.346 1 9 1.409 1.752 2.480 30.0 14.8 20500 HA06-AWE25-B057-105 2.480 1.000 4.134 0.295 3.110 4.134 1 9 1.906 2.248 2.480 30.0 18.4 20500 HA06-AWE31-B063-110 2.480 1.250 4.331 0.295 4.331 1 9 2.138 2.480 30.0 33.2 20500 HA10-AWE06-B025-075 3.937 0.250 2.953 0.110 1.260 2.953 1 9 0.772 0.992 3.937 30.0 2.2 12500 HA10-AWE09-B030-085 3.937 0.375 3.346 0.295 1.654 3.346 1 9 0.819 1.161 3.937 30.0 7.4 12500 HA10-AWE12-B036-090 3.937 0.500 3.543 0.295 1.929 3.543 1 9 1.067 1.409 3.937 30.0 8.9 12500 HA10-AWE15-B041-095 3.937 0.625 3.740 0.295 2.126 3.740 1 9 1.272 1.614 3.937 30.0 11.1 12500 HA10-AWE19-B044-090 3.937 0.750 3.543 0.295 2.087 3.543 1 9 1.409 1.752 3.937 30.0 14.8 12500 HA10-AWE25-B057-100 3.937 1.000 3.937 0.295 2.598 3.937 1 9 1.906 2.248 3.937 30.0 18.4 12500 HA10-AWE31-B063-100 3.937 1.250 3.937 0.295 2.795 3.937 1 9 2.138 2.480 3.937 30.0 33.2 12500 HA10-AWE38-B070-110 3.937 1.500 4.331 0.295 3.189 4.331 1 9 2.413 2.756 3.937 30.0 33.2 12500 HA10-AWE50-B093-135 3.937 2.000 5.315 0.295 4.173 5.315 1 9 3.339 3.681 3.937 30.0 44.3 12500 ​ 426
