Инструменты расточки | CoroBore® 825

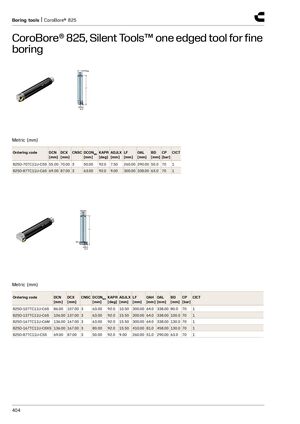

CoroBore® 825, однокромочный инструмент Silent Tools™ для чистовой расточки
Метрические размеры (мм)
| Артикул | DCN [мм] | DCX [мм] | CNSC | DCONMS [мм] | KAPR [град] | ADJLX [мм] | LF [мм] | OAL [мм] | BD [мм] | CP [бар] | CICT |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 825D-70TC11U-C5S | 55.00 | 70.00 | 3 | 50.00 | 92.0 | 7.50 | 260.00 | 290.00 | 50.0 | 70 | 1 |
| 825D-87TC11U-C6S | 69.00 | 87.00 | 3 | 63.00 | 92.0 | 9.00 | 300.00 | 338.00 | 63.0 | 70 | 1 |
| Артикул | DCN [мм] | DCX [мм] | CNSC | DCONMS [мм] | KAPR [град] | ADJLX [мм] | LF [мм] | OAH [мм] | OAL [мм] | BD [мм] | CP [бар] | CICT |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 825D-107TC11U-C6S | 86.00 | 107.00 | 3 | 63.00 | 92.0 | 10.50 | 300.00 | 64.0 | 338.00 | 80.0 | 70 | 1 |
| 825D-137TC11U-C6S | 106.00 | 137.00 | 3 | 63.00 | 92.0 | 15.50 | 300.00 | 64.0 | 338.00 | 100.0 | 70 | 1 |
| 825D-167TC11U-C6M | 136.00 | 167.00 | 3 | 63.00 | 92.0 | 15.50 | 300.00 | 64.0 | 338.00 | 130.0 | 70 | 1 |
| 825D-167TC11U-C8XS | 136.00 | 167.00 | 3 | 80.00 | 92.0 | 15.50 | 410.00 | 81.0 | 458.00 | 130.0 | 70 | 1 |
| 825D-87TC11U-C5S | 69.00 | 87.00 | 3 | 50.00 | 92.0 | 9.00 | 260.00 | 51.0 | 290.00 | 63.0 | 70 | 1 |
