Фрезерные инструменты | Торцовые фрезерные инструменты

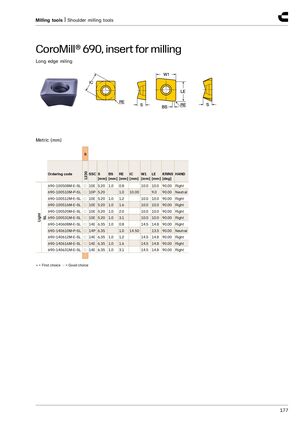

CoroMill® 690, пластина для фрезерования
Фрезерование с длинной режущей кромкой
| Артикул | SSC | S [мм] | BS [мм] | RE [мм] | IC [мм] | W1 [мм] | LE [мм] | KRINS [град.] | HAND |
|---|---|---|---|---|---|---|---|---|---|
| 690-100508M-E-SL | 10E | 5.20 | 1.0 | 0.8 | — | 10.0 | 10.0 | 90.00 | Right |
| 690-100510M-P-SL | 10P | 5.20 | — | 1.0 | 10.00 | — | 9.0 | 90.00 | Neutral |
| 690-100512M-E-SL | 10E | 5.20 | 1.0 | 1.2 | — | 10.0 | 10.0 | 90.00 | Right |
| 690-100516M-E-SL | 10E | 5.20 | 1.0 | 1.6 | — | 10.0 | 10.0 | 90.00 | Right |
| 690-100520M-E-SL | 10E | 5.20 | 1.0 | 2.0 | — | 10.0 | 10.0 | 90.00 | Right |
| 690-100531M-E-SL | 10E | 5.20 | 1.0 | 3.1 | — | 10.0 | 10.0 | 90.00 | Right |
| 690-140608M-E-SL | 14E | 6.35 | 1.0 | 0.8 | — | 14.5 | 14.8 | 90.00 | Right |
| 690-140610M-P-SL | 14P | 6.35 | — | 1.0 | 14.50 | — | 13.5 | 90.00 | Neutral |
| 690-140612M-E-SL | 14E | 6.35 | 1.0 | 1.2 | — | 14.5 | 14.8 | 90.00 | Right |
| 690-140616M-E-SL | 14E | 6.35 | 1.0 | 1.6 | — | 14.5 | 14.8 | 90.00 | Right |
| 690-140631M-E-SL | 14E | 6.35 | 1.0 | 3.1 | — | 14.5 | 14.8 | 90.00 | Right |
● = Первый выбор ○ = Хороший выбор
