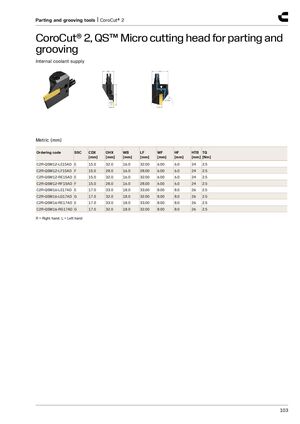

Инструменты отрезки и нарезания канавок | CoroCut® 2
CoroCut® 2, микрорезец QS™ для отрезки и нарезания канавок
Внутренняя подача СОЖ
| Артикул | SSC | CDX [мм] | OHX [мм] | WB [мм] | LF [мм] | WF [мм] | HF [мм] | HTB [мм] | TQ [Нм] |
|---|---|---|---|---|---|---|---|---|---|
| C2R-QSM12-LE15AD | E | 15.0 | 32.0 | 16.0 | 32.00 | 6.00 | 6.0 | 24 | 2.5 |
| C2R-QSM12-LF15AD | F | 15.0 | 28.0 | 16.0 | 28.00 | 6.00 | 6.0 | 24 | 2.5 |
| C2R-QSM12-RE15AD | E | 15.0 | 32.0 | 16.0 | 32.00 | 6.00 | 6.0 | 24 | 2.5 |
| C2R-QSM12-RF15AD | F | 15.0 | 28.0 | 16.0 | 28.00 | 6.00 | 6.0 | 24 | 2.5 |
| C2R-QSM16-LE17AD | E | 17.0 | 33.0 | 18.0 | 33.00 | 8.00 | 8.0 | 26 | 2.5 |
| C2R-QSM16-LG17AD | G | 17.0 | 32.0 | 18.0 | 32.00 | 8.00 | 8.0 | 26 | 2.5 |
| C2R-QSM16-RE17AD | E | 17.0 | 33.0 | 18.0 | 33.00 | 8.00 | 8.0 | 26 | 2.5 |
| C2R-QSM16-RG17AD | G | 17.0 | 32.0 | 18.0 | 32.00 | 8.00 | 8.0 | 26 | 2.5 |
R = правая рука, L = левая рука
