Фрезерные инструменты | Плечевые фрезы

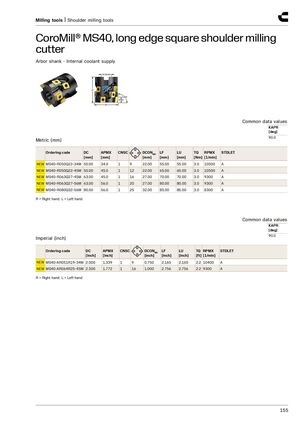

CoroMill® MS40, плечевая фреза с длинной кромкой
Хвостовик-державка - внутренняя подача СОЖ
Метрические размеры (мм)
Общие значения данных: KAPR = 90,0°
| Артикул | DC (мм) | APMX (мм) | CNSC | DCONMS (мм) | LF (мм) | LU (мм) | TQ (Нм) | RPMX (об/мин) | STDLET |
|---|---|---|---|---|---|---|---|---|---|
| MS40-R050Q22-34M | 50.00 | 34.0 | 1 | 22.00 | 55.00 | 55.00 | 3.0 | 10500 | A |
| MS40-R050Q22-45M | 50.00 | 45.0 | 1 | 22.00 | 65.00 | 65.00 | 3.0 | 10500 | A |
| MS40-R063Q27-45M | 63.00 | 45.0 | 1 | 27.00 | 70.00 | 70.00 | 3.0 | 9300 | A |
| MS40-R063Q27-56M | 63.00 | 56.0 | 1 | 27.00 | 80.00 | 80.00 | 3.0 | 9300 | A |
| MS40-R080Q32-56M | 80.00 | 56.0 | 1 | 32.00 | 85.00 | 85.00 | 3.0 | 8300 | A |
Размеры в дюймах (inch)
Общие значения данных: KAPR = 90,0°
| Артикул | DC (дюйм) | APMX (дюйм) | CNSC | DCONMS (дюйм) | LF (дюйм) | LU (дюйм) | TQ (фунт-сила фут) | RPMX (об/мин) | STDLET |
|---|---|---|---|---|---|---|---|---|---|
| MS40-AR051R19-34M | 2.000 | 1.339 | 1 | 0.750 | 2.165 | 2.165 | 2.2 | 10400 | A |
| MS40-AR064R25-45M | 2.500 | 1.772 | 1 | 1.000 | 2.756 | 2.756 | 2.2 | 9300 | A |
Р = Правое вращение, Л = Левое вращение
