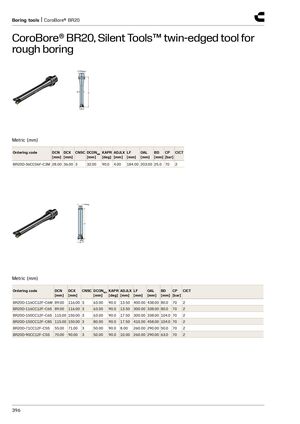

Расточные инструменты | CoroBore® BR20
CoroBore® BR20, двухугольный расточный инструмент с технологией Silent Tools™ для черновой обработки
| Код заказа | DCN [мм] | DCX [мм] | CNSC | DCONMS [мм] | KAPR [град] | ADJLX [мм] | LF [мм] | OAL [мм] | BD [мм] | CP [бар] | CICT |
|---|---|---|---|---|---|---|---|---|---|---|---|
| BR20D-36CC06F-C3M | 28.00 | 36.00 | 3 | 32.00 | 90.0 | 4.00 | 184.00 | 203.00 | 25.0 | 70 | 2 |
Метрические размеры
| Код заказа | DCN [мм] | DCX [мм] | CNSC | DCONMS [мм] | KAPR [град] | ADJLX [мм] | LF [мм] | OAL [мм] | BD [мм] | CP [бар] | CICT |
|---|---|---|---|---|---|---|---|---|---|---|---|
| BR20D-116CC12F-C6M | 89.00 | 116.00 | 3 | 63.00 | 90.0 | 13.50 | 400.00 | 438.00 | 80.0 | 70 | 2 |
| BR20D-116CC12F-C6S | 89.00 | 116.00 | 3 | 63.00 | 90.0 | 13.50 | 300.00 | 338.00 | 80.0 | 70 | 2 |
| BR20D-150CC12F-C6S | 115.00 | 150.00 | 3 | 63.00 | 90.0 | 17.50 | 300.00 | 338.00 | 104.0 | 70 | 2 |
| BR20D-150CC12F-C8S | 115.00 | 150.00 | 3 | 80.00 | 90.0 | 17.50 | 410.00 | 458.00 | 104.0 | 70 | 2 |
| BR20D-71CC12F-C5S | 55.00 | 71.00 | 3 | 50.00 | 90.0 | 8.00 | 260.00 | 290.00 | 50.0 | 70 | 2 |
| BR20D-90CC12F-C5S | 70.00 | 90.00 | 3 | 50.00 | 90.0 | 10.00 | 260.00 | 290.00 | 63.0 | 70 | 2 |
