Инструменты фрезерования | Инструменты для фрезерования канавок

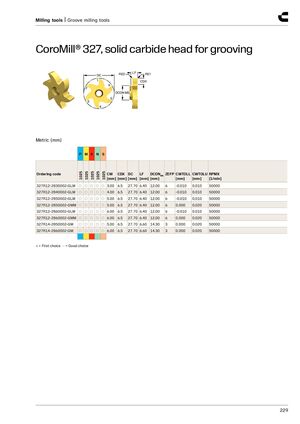

CoroMill® 327, твердосплавная головка для фрезерования
| Артикул | CW CDX [мм] | DC [мм] | LF [мм] | DCONMS [мм] | ZEFP | CWTOLL [мм] | CWTOLU [мм] | RPMX [об/мин] | |
|---|---|---|---|---|---|---|---|---|---|
| 327R12-2830002-GLM | 3.00 | 6.5 | 27.70 | 6.40 | 12.00 | 6 | -0.010 | 0.010 | 50000 |
| 327R12-2840002-GLM | 4.00 | 6.5 | 27.70 | 6.40 | 12.00 | 6 | -0.010 | 0.010 | 50000 |
| 327R12-2850002-GLM | 5.00 | 6.5 | 27.70 | 6.40 | 12.00 | 6 | -0.010 | 0.010 | 50000 |
| 327R12-2850002-GMM | 5.00 | 6.5 | 27.70 | 6.40 | 12.00 | 6 | 0.000 | 0.020 | 50000 |
| 327R12-2860002-GLM | 6.00 | 6.5 | 27.70 | 6.40 | 12.00 | 6 | -0.010 | 0.010 | 50000 |
| 327R12-2860002-GMM | 6.00 | 6.5 | 27.70 | 6.40 | 12.00 | 6 | 0.000 | 0.020 | 50000 |
| 327R14-2850002-GM | 5.00 | 6.5 | 27.70 | 6.60 | 14.30 | 3 | 0.000 | 0.020 | 50000 |
| 327R14-2860002-GM | 6.00 | 6.5 | 27.70 | 6.60 | 14.30 | 3 | 0.000 | 0.020 | 50000 |
