Зажимные приспособления и переходники | Вращающиеся переходники инструмента

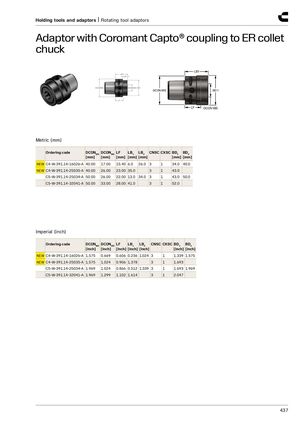

Переходник с Coromant Capto® муфтой к цанговому патрону ER
Метрические единицы (мм)
| Артикул | DCONMS [мм] | DCONWS [мм] | LF [мм] | LB1 [мм] | LB2 [мм] | CNSC | CXSC | BD1 [мм] | BD2 [мм] |
|---|---|---|---|---|---|---|---|---|---|
| NEW C4-W-391.14-16026-A | 40,00 | 17,00 | 15,40 | 6,0 | 26,0 | 3 | 1 | 34,0 | 40,0 |
| NEW C4-W-391.14-25035-A | 40,00 | 26,00 | 23,00 | 35,0 | 3 | 1 | 43,0 | ||
| C5-W-391.14-25034-A | 50,00 | 26,00 | 22,00 | 13,0 | 34,0 | 3 | 1 | 43,0 | 50,0 |
| C5-W-391.14-32041-A | 50,00 | 33,00 | 28,00 | 41,0 | 3 | 1 | 52,0 |
Дюймовые единицы (дюймы)
| Артикул | DCONMS [дюйм] | DCONWS [дюйм] | LF [дюйм] | LB1 [дюйм] | LB2 [дюйм] | CNSC | CXSC | BD1 [дюйм] | BD2 [дюйм] |
|---|---|---|---|---|---|---|---|---|---|
| NEW C4-W-391.14-16026-A | 1,575 | 0,669 | 0,606 | 0,236 | 1,024 | 3 | 1 | 1,339 | 1,575 |
| NEW C4-W-391.14-25035-A | 1,575 | 1,024 | 0,906 | 1,378 | 3 | 1 | 1,693 | ||
| C5-W-391.14-25034-A | 1,969 | 1,024 | 0,866 | 0,512 | 1,339 | 3 | 1 | 1,693 | 1,969 |
| C5-W-391.14-32041-A | 1,969 | 1,299 | 1,102 | 1,614 | 3 | 1 | 2,047 |
