Инструменты для фрезерования | Инструменты для фрезерования канавок

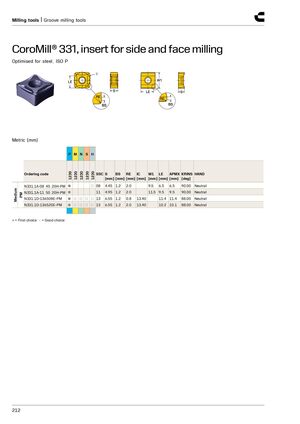

CoroMill® 331, пластина для торцевого и бокового фрезерования
Оптимизирована для стали, ISO P
Метрические размеры (мм)
| Код заказа | SSC | S [мм] | BS [мм] | RE [мм] | IC [мм] | W1 [мм] | LE [мм] | APMX [мм] | KRINS [град] | HAND | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| N331.1A-08 45 20H-PM | ● ○ | 08 | 4.45 | 1.2 | 2.0 | 9.5 | 6.5 | 6.5 | 90.00 | Neutral | |
| N331.1A-11 50 20H-PM | ● | 11 | 4.95 | 1.2 | 2.0 | 11.5 | 9.5 | 9.5 | 90.00 | Neutral | |
| N331.1D-136508E-PM | ● ○ ○ ○ ○ | 13 | 6.55 | 1.2 | 0.8 | 13.40 | 11.4 | 11.4 | 88.00 | Neutral | |
| N331.1D-136520E-PM | ● ○ ○ ○ ○ | 13 | 6.55 | 1.2 | 2.0 | 13.40 | 10.2 | 10.1 | 88.00 | Neutral |
● = Первый выбор ○ = Хороший выбор
