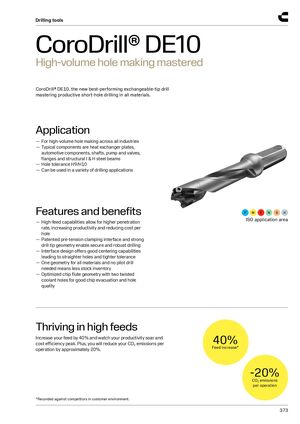

Drilling tools CoroDrill® DE10 High-volume hole making mastered CoroDrill® DE10, the new best-performing exchangeable-tip drill mastering productive short-hole drilling in all materials. Application — For high-volume hole making across all industries — Typical components are heat exchanger plates, automotive components, shafts, pump and valves, flanges and structural I & H steel beams — Hole tolerance H9/H10 — Can be used in a variety of drilling applications Features and benefits ISO application area — High-feed capabilities allow for higher penetration rate, increasing productivity and reducing cost per hole — Patented pre-tension clamping interface and strong drill tip geometry enable secure and robust drilling — Interface design offers good centering capabilities leading to straighter holes and tighter tolerance — One geometry for all materials and no pilot drill needed means less stock inventory — Optimized chip flute geometry with two twisted coolant holes for good chip evacuation and hole quality Thriving in high feeds Increase your feed by 40% and watch your productivity soar and cost efficiency peak. Plus, you will reduce your CO2 emissions per 40% Feed increase* operation by approximately 20%. -20% CO2 emissions per operation *Recorded against competitors in customer environment.​ 373
