Фрезерные инструменты | Торцовые фрезерные инструменты

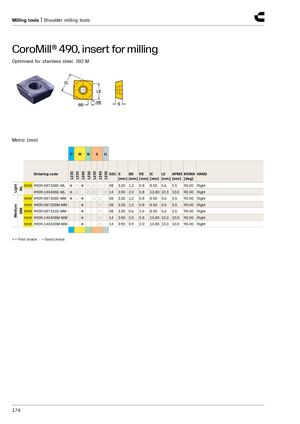

CoroMill® 490, пластина для фрезерования
Оптимизирована для обработки нержавеющей стали, ISO M
| Артикул | SSC | S [мм] | BS [мм] | RE [мм] | IC [мм] | LE [мм] | APMX [мм] | KRINS [град.] | HAND |
|---|---|---|---|---|---|---|---|---|---|
| NEW 490R-08T308E-ML | 08 | 3.30 | 1.2 | 0.8 | 8.50 | 5.6 | 5.5 | 90.00 | Right |
| 490R-140408E-ML | 14 | 3.90 | 2.0 | 0.8 | 13.80 | 10.3 | 10.0 | 90.00 | Right |
| NEW 490R-08T308E-MM | 08 | 3.30 | 1.2 | 0.8 | 8.50 | 5.6 | 5.5 | 90.00 | Right |
| NEW 490R-08T308M-MM | 08 | 3.30 | 1.2 | 0.8 | 8.50 | 5.6 | 5.5 | 90.00 | Right |
| NEW 490R-08T316E-MM | 08 | 3.30 | 0.6 | 1.6 | 8.50 | 5.6 | 5.5 | 90.00 | Right |
| NEW 490R-140408M-MM | 14 | 3.90 | 2.0 | 0.8 | 13.80 | 10.3 | 10.0 | 90.00 | Right |
| NEW 490R-140420M-MM | 14 | 3.90 | 0.9 | 2.0 | 13.80 | 10.3 | 10.0 | 90.00 | Right |
● = Первый выбор ○ = Хороший выбор
