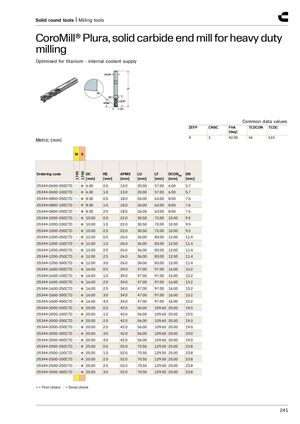

Solid round tools | Milling tools CoroMill® Plura, solid carbide end mill for heavy duty milling Optimised for titanium - internal coolant supply Common data values ZEFP CNSC FHA TCDCON TCDC [deg] 4 1 42.00 h6 h10 Metric (mm) M S 1745 1745 Ordering code DC RE APMX LU LF DCONMS DN [mm] [mm] [mm] [mm] [mm] [mm] [mm] 2S344-0600-050CTD ○ ● 6.00 0.5 13.0 20.00 57.00 6.00 5.7 2S344-0600-100CTD ○ ● 6.00 1.0 13.0 20.00 57.00 6.00 5.7 2S344-0800-050CTD ○ ● 8.00 0.5 18.0 26.00 63.00 8.00 7.6 2S344-0800-100CTD ○ ● 8.00 1.0 18.0 26.00 63.00 8.00 7.6 2S344-0800-200CTD ○ ● 8.00 2.0 18.0 26.00 63.00 8.00 7.6 2S344-1000-050CTD ○ ● 10.00 0.5 22.0 30.50 72.00 10.00 9.5 2S344-1000-100CTD ○ ● 10.00 1.0 22.0 30.50 72.00 10.00 9.5 2S344-1000-200CTD ○ ● 10.00 2.0 22.0 30.50 72.00 10.00 9.5 2S344-1200-050CTD ○ ● 12.00 0.5 26.0 36.00 83.00 12.00 11.4 2S344-1200-100CTD ○ ● 12.00 1.0 26.0 36.00 83.00 12.00 11.4 2S344-1200-200CTD ○ ● 12.00 2.0 26.0 36.00 83.00 12.00 11.4 2S344-1200-250CTD ○ ● 12.00 2.5 26.0 36.00 83.00 12.00 11.4 2S344-1200-300CTD ○ ● 12.00 3.0 26.0 36.00 83.00 12.00 11.4 2S344-1600-050CTD ○ ● 16.00 0.5 34.0 47.00 97.00 16.00 15.2 2S344-1600-100CTD ○ ● 16.00 1.0 34.0 47.00 97.00 16.00 15.2 2S344-1600-200CTD ○ ● 16.00 2.0 34.0 47.00 97.00 16.00 15.2 2S344-1600-250CTD ○ ● 16.00 2.5 34.0 47.00 97.00 16.00 15.2 2S344-1600-300CTD ○ ● 16.00 3.0 34.0 47.00 97.00 16.00 15.2 2S344-1600-400CTD ○ ● 16.00 4.0 34.0 47.00 97.00 16.00 15.2 2S344-2000-050CTD ○ ● 20.00 0.5 42.0 56.00 109.60 20.00 19.0 2S344-2000-100CTD ○ ● 20.00 1.0 42.0 56.00 109.60 20.00 19.0 2S344-2000-200CTD ○ ● 20.00 2.0 42.0 56.00 109.60 20.00 19.0 2S344-2000-250CTD ○ ● 20.00 2.5 42.0 56.00 109.60 20.00 19.0 2S344-2000-300CTD ○ ● 20.00 3.0 42.0 56.00 109.60 20.00 19.0 2S344-2000-400CTD ○ ● 20.00 4.0 42.0 56.00 109.60 20.00 19.0 2S344-2500-050CTD ○ ● 25.00 0.5 52.0 70.50 129.50 25.00 23.8 2S344-2500-100CTD ○ ● 25.00 1.0 52.0 70.50 129.50 25.00 23.8 2S344-2500-200CTD ○ ● 25.00 2.0 52.0 70.50 129.50 25.00 23.8 2S344-2500-250CTD ○ ● 25.00 2.5 52.0 70.50 129.50 25.00 23.8 2S344-2500-300CTD ○ ● 25.00 3.0 52.0 70.50 129.50 25.00 23.8 ● = First choice ○ = Good choice 241
