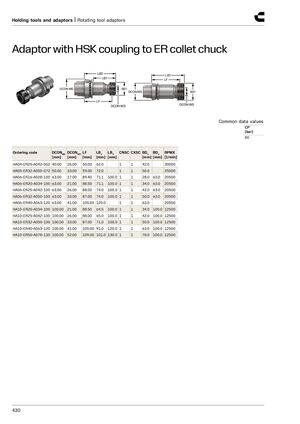

Зажимные приспособления и переходники | Вращающиеся переходники инструмента
Переходник с HSK-хвостовиком к цанговому патрону ER
Общие значения данных
Давление охлаждающей жидкости: 80 [бар]
| Артикул | DCONMS [мм] | DCONWS [мм] | LF [мм] | LB1 [мм] | LB2 [мм] | CNSC | CXSC | BD1 [мм] | BD2 [мм] | RPMX [об/мин] |
|---|---|---|---|---|---|---|---|---|---|---|
| HA04-ER25-A042-062 | 40,00 | 26,00 | 50,00 | 62,0 | 1 | 1 | 42,0 | 30000 | ||
| HA05-ER32-A050-072 | 50,00 | 33,00 | 59,00 | 72,0 | 1 | 1 | 50,0 | 25000 | ||
| HA06-ER16-A028-100 | 63,00 | 17,00 | 89,40 | 71,1 | 100,0 | 1 | 1 | 28,0 | 63,0 | 20500 |
| HA06-ER20-A034-100 | 63,00 | 21,00 | 88,50 | 71,1 | 100,0 | 1 | 1 | 34,0 | 63,0 | 20500 |
| HA06-ER25-A042-100 | 63,00 | 26,00 | 88,00 | 74,0 | 100,0 | 1 | 1 | 42,0 | 63,0 | 20500 |
| HA06-ER32-A050-100 | 63,00 | 33,00 | 87,00 | 74,0 | 100,0 | 1 | 1 | 50,0 | 63,0 | 20500 |
| HA06-ER40-A063-120 | 63,00 | 41,00 | 105,00 | 120,0 | 1 | 1 | 63,0 | 20500 | ||
| HA10-ER20-A034-100 | 100,00 | 21,00 | 88,50 | 64,5 | 100,0 | 1 | 1 | 34,0 | 100,0 | 12500 |
| HA10-ER25-A042-100 | 100,00 | 26,00 | 88,00 | 65,0 | 100,0 | 1 | 1 | 42,0 | 100,0 | 12500 |
| HA10-ER32-A050-100 | 100,00 | 33,00 | 87,00 | 71,0 | 100,0 | 1 | 1 | 50,0 | 100,0 | 12500 |
| HA10-ER40-A063-120 | 100,00 | 41,00 | 105,00 | 91,0 | 120,0 | 1 | 1 | 63,0 | 100,0 | 12500 |
| HA10-ER50-A078-130 | 100,00 | 52,00 | 109,00 | 101,0 | 130,0 | 1 | 1 | 78,0 | 100,0 | 12500 |
