Цельные круглые инструменты | Фрезерный инструмент

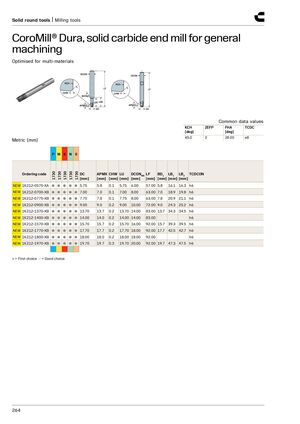

CoroMill® Dura твердосплавный концевой фрез для общего фрезерования
Оптимизирован для многоматериалов
Значения общих данных
| KCH [град] | ZEFP | FHA [град] | TCDC |
|---|---|---|---|
| 45.0 | 2 | 28.00 | e8 |
Метрические (мм)
| Артикул | DC [мм] | APMX [мм] | CHW [мм] | LU [мм] | DCONMS [мм] | LF [мм] | BD 1 [мм] | LB 1 [мм] | LB 2 [мм] | TCDCON |
|---|---|---|---|---|---|---|---|---|---|---|
| NEW 1K212-0575-XA | 5.75 | 5.8 | 0.1 | 5.75 | 6.00 | 57.00 | 5.8 | 16.1 | 16.3 | h6 |
| NEW 1K212-0700-XB | 7.00 | 7.0 | 0.1 | 7.00 | 8.00 | 63.00 | 7.0 | 18.9 | 19.8 | h6 |
| NEW 1K212-0775-XB | 7.75 | 7.8 | 0.1 | 7.75 | 8.00 | 63.00 | 7.8 | 20.9 | 21.1 | h6 |
| NEW 1K212-0900-XB | 9.00 | 9.0 | 0.2 | 9.00 | 10.00 | 72.00 | 9.0 | 24.3 | 25.2 | h6 |
| NEW 1K212-1370-XB | 13.70 | 13.7 | 0.2 | 13.70 | 14.00 | 83.00 | 13.7 | 34.3 | 34.5 | h6 |
| NEW 1K212-1400-XB | 14.00 | 14.0 | 0.2 | 14.00 | 14.00 | 83.00 | h6 | |||
| NEW 1K212-1570-XB | 15.70 | 15.7 | 0.2 | 15.70 | 16.00 | 92.00 | 15.7 | 39.3 | 39.5 | h6 |
| NEW 1K212-1770-XB | 17.70 | 17.7 | 0.2 | 17.70 | 18.00 | 92.00 | 17.7 | 42.5 | 42.7 | h6 |
| NEW 1K212-1800-XB | 18.00 | 18.0 | 0.2 | 18.00 | 18.00 | 92.00 | h6 | |||
| NEW 1K212-1970-XB | 19.70 | 19.7 | 0.3 | 19.70 | 20.00 | 92.00 | 19.7 | 47.3 | 47.5 | h6 |
