Инструменты расточки | Внутренние инструменты расточки

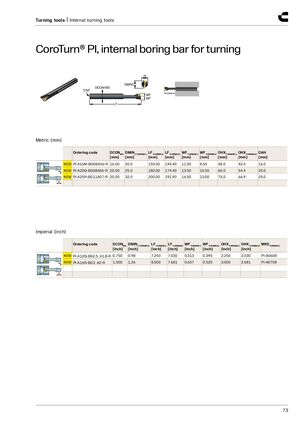

CoroTurn® PI, расточная шпиндельная втулка для расточки
Метрическая система (мм)
| Артикул заказа | DCONMS [мм] | DMIN 1 ОБРАБОТКА 1 [мм] | LF ОБРАБОТКА 1 [мм] | LF ОБРАБОТКА 2 [мм] | WF ОБРАБОТКА 1 [мм] | WF ОБРАБОТКА 2 [мм] | OHX ОБРАБОТКА 1 [мм] | OHX ОБРАБОТКА 2 [мм] | OAH [мм] | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| НОВ PI-A16M-BG08A06-R | 16.00 | 20.0 | 150.00 | 144.40 | 11.00 | — | 8.50 | — | 48.0 | 42.4 | 16.0 |
| НОВ PI-A20Q-BG08A06-R | 20.00 | 25.0 | 180.00 | 174.40 | 13.50 | — | 10.50 | — | 60.0 | 54.4 | 20.0 |
| НОВ PI-A25R-BG11A07-R | 25.00 | 32.0 | 200.00 | 191.90 | 16.50 | — | 13.00 | — | 75.0 | 66.9 | 25.0 |
Система мер: дюймы (inch)
| Артикул заказа | DCONMS [дюйм] | DMIN 1 ОБРАБОТКА 1 [дюйм] | LF ОБРАБОТКА 1 [дюйм] | LF ОБРАБОТКА 2 [дюйм] | WF ОБРАБОТКА 1 [дюйм] | WF ОБРАБОТКА 2 [дюйм] | OHX ОБРАБОТКА 1 [дюйм] | OHX ОБРАБОТКА 2 [дюйм] | MIID ОБРАБОТКА 1 | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| НОВ PI-A12Q-BG2.5 A1.8-R | 0.750 | 0.98 | 7.250 | 7.030 | 0.513 | — | 0.395 | — | 2.250 | 2.030 | PI-A0608 |
| НОВ PI-A16R-BG3 A2-R | 1.000 | 1.26 | 8.000 | 7.681 | 0.657 | — | 0.520 | — | 3.000 | 2.681 | PI-A0708 |
