Инструменты фрезерования | Инструменты фрезерования торцевых уступов

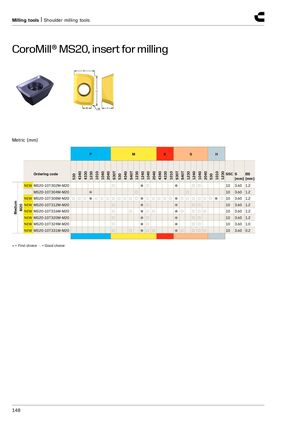

CoroMill® MS20, пластина для фрезерования
| Код заказа | SSC | S [мм] | BS [мм] | Марка материала | |||||
|---|---|---|---|---|---|---|---|---|---|
| Тип | Марка | Условия обработки | |||||||
| Средняя (M20) | |||||||||
| NEW MS20-10T302M-M20 | ○ | 10 | 3.60 | 1.2 | |||||
| MS20-10T304M-M20 | ● | 10 | 3.60 | 1.2 | |||||
| NEW MS20-10T308M-M20 | ● | 10 | 3.60 | 1.2 | |||||
| NEW MS20-10T312M-M20 | — | 10 | 3.60 | 1.2 | |||||
| NEW MS20-10T316M-M20 | — | 10 | 3.60 | 1.2 | |||||
| NEW MS20-10T320M-M20 | — | 10 | 3.60 | 1.2 | |||||
| NEW MS20-10T324M-M20 | — | 10 | 3.60 | 1.0 | |||||
| NEW MS20-10T331M-M20 | — | 10 | 3.60 | 0.2 | |||||
● = Первый выбор ○ = Хороший выбор
