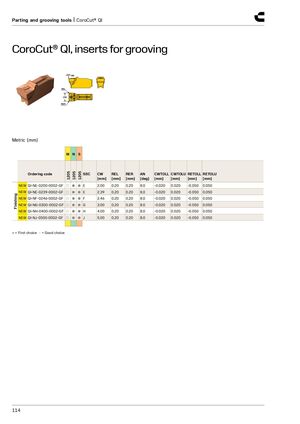

Резцы для отрезки и нарезки канавок | CoroCut® QI
CoroCut® QI, пластины для нарезки канавок
| Метрические размеры (мм) | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| Класс | M N S 1205 | ||||||||
| Код заказа | SSC | CW [мм] | REL [мм] | RER [мм] | AN [град] | CWTOLL [мм] | CWTOLU [мм] | RETOLL [мм] | RETOLU [мм] |
| Чистовая обработка | |||||||||
| NEW QI-NE-0200-0002-GF ●●● | E | 2.00 | 0.20 | 0.20 | 8.0 | -0.020 | 0.020 | -0.050 | 0.050 |
| NEW QI-NE-0239-0002-GF ●●● | E | 2.39 | 0.20 | 0.20 | 8.0 | -0.020 | 0.020 | -0.050 | 0.050 |
| NEW QI-NF-0246-0002-GF ●●● | F | 2.46 | 0.20 | 0.20 | 8.0 | -0.020 | 0.020 | -0.050 | 0.050 |
| NEW QI-NG-0300-0002-GF ●●● | G | 3.00 | 0.20 | 0.20 | 8.0 | -0.020 | 0.020 | -0.050 | 0.050 |
| NEW QI-NH-0400-0002-GF ●●● | H | 4.00 | 0.20 | 0.20 | 8.0 | -0.020 | 0.020 | -0.050 | 0.050 |
| NEW QI-NJ-0500-0002-GF ●●● | J | 5.00 | 0.20 | 0.20 | 8.0 | -0.020 | 0.020 | -0.050 | 0.050 |
● = Первый выбор ○ = Хороший выбор
