Инструменты фрезерования | Инструменты профильного фрезерования

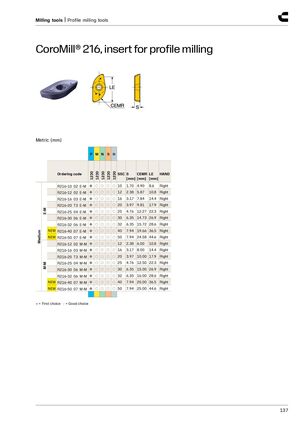

CoroMill® 216, пластина для профильного фрезерования
Метрические размеры (мм)
| Код заказа | SSC | S [мм] | CEMR [мм] | LE [мм] | HAND |
|---|---|---|---|---|---|
| E-M | |||||
| R216-10 02 E-M | ● | 1.70 | 4.90 | 8.6 | Правая |
| R216-12 02 E-M | ● | 2.38 | 5.87 | 10.8 | Правая |
| R216-16 03 E-M | ● | 3.17 | 7.84 | 14.4 | Правая |
| R216-20 T3 E-M | ● | 3.97 | 9.81 | 17.9 | Правая |
| R216-25 04 E-M | ● | 4.76 | 12.27 | 22.3 | Правая |
| R216-30 06 E-M | ● | 6.35 | 14.73 | 26.9 | Правая |
| R216-32 06 E-M | ● | 6.35 | 15.72 | 28.6 | Правая |
| NEW R216-40 07 E-M | ● | 7.94 | 19.66 | 36.5 | Правая |
| NEW R216-50 07 E-M | ● | 7.94 | 24.58 | 44.6 | Правая |
| M-M | |||||
| R216-12 02 M-M | ● | 2.38 | 6.00 | 10.8 | Правая |
| R216-16 03 M-M | ● | 3.17 | 8.00 | 14.4 | Правая |
| R216-20 T3 M-M | ● | 3.97 | 10.00 | 17.9 | Правая |
| R216-25 04 M-M | ● | 4.76 | 12.50 | 22.3 | Правая |
| R216-30 06 M-M | ● | 6.35 | 15.00 | 26.9 | Правая |
| R216-32 06 M-M | ● | 6.35 | 16.00 | 28.6 | Правая |
| NEW R216-40 07 M-M | ● | 7.94 | 20.00 | 36.5 | Правая |
| NEW R216-50 07 M-M | ● | 7.94 | 25.00 | 44.6 | Правая |
● = Первый выбор ○ = Хороший выбор
