Токарный инструмент | Внешний токарный инструмент

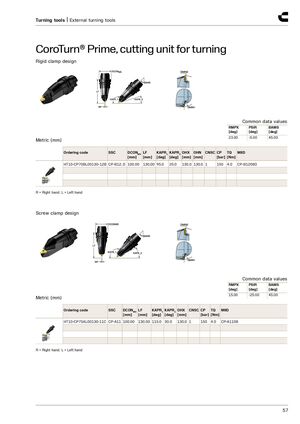

CoroTurn® Prime, режущая головка для токарной обработки
Жесткая зажимная конструкция
Метрическая система (мм)
Общие значения данных
| RMPX [град] | PSIR [град] | BAMS [град] | |
|---|---|---|---|
| 23.00 | -5.00 | 45.00 |
| Артикул | Код сумм | DCONMS [мм] | LF [мм] | KAPR 1 [град] | KAPR 2 [град] | OHX [мм] | OHN [мм] | CNSC | CP [бар] | TQ [Нм] | MIID |
|---|---|---|---|---|---|---|---|---|---|---|---|
| HT10-CP70BL00130-12B | CP-B12..D | 100.00 | 130.00 | 95.0 | 25.0 | 130.0 | 130.0 | 1 | 150 | 4.0 | CP-B1208D |
П = Правое, Л = Левое
Зажим винтовой конструкции
Общие значения данных
| RMPX [град] | PSIR [град] | BAMS [град] | |
|---|---|---|---|
| 15.00 | -25.00 | 45.00 |
| Артикул | Код сумм | DCONMS [мм] | LF [мм] | KAPR 1 [град] | KAPR 2 [град] | OHX [мм] | CNSC | CP [бар] | TQ [Нм] | MIID | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| HT10-CP75AL00130-11C | CP-A11 | 100.00 | 130.00 | 115.0 | 30.0 | 130.0 | 1 | 150 | 4.0 | CP-A1108 |
П = Правое, Л = Левое
