Инструменты для точения | Индексируемые пластины для точения

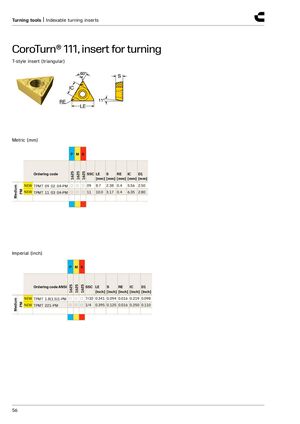

CoroTurn® 111, пластина для точения
Пластина Т-образной формы (треугольная)
Метрическая система (мм)
| Код заказа | Оценка | SSC [мм] | LE [мм] | S [мм] | RE [мм] | IC [мм] | D1 [мм] | ||
|---|---|---|---|---|---|---|---|---|---|
| Средняя обработка (PM) | |||||||||
| NEW TPMT 09 02 04-PM | ● | ● | ● | 09 | 8.7 | 2.38 | 0.4 | 5.56 | 2.50 |
| NEW TPMT 11 03 04-PM | ● | ● | ● | 11 | 10.0 | 3.17 | 0.4 | 6.35 | 2.80 |
Дюймовая система
| Код заказа ANSI | Оценка | SSC [дюйм] | LE [дюйм] | S [дюйм] | RE [дюйм] | IC [дюйм] | D1 [дюйм] | ||
|---|---|---|---|---|---|---|---|---|---|
| Средняя обработка (PM) | |||||||||
| NEW TPMT 1.8(1.5)1-PM | ● | ● | ● | 7/32 | 0.341 | 0.094 | 0.016 | 0.219 | 0.098 |
| NEW TPMT 221-PM | ● | ● | ● | 1/4 | 0.395 | 0.125 | 0.016 | 0.250 | 0.110 |
