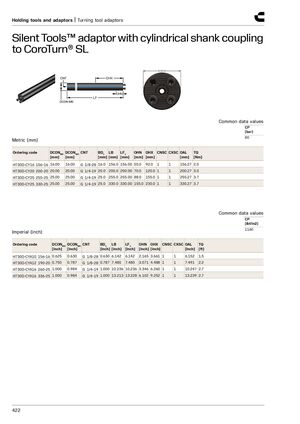

Holding tools and adaptors | Turning tool adaptors Silent Tools™ adaptor with cylindrical shank coupling to CoroTurn® SL​​ ​ DCON WS CNT OHX OHN LF DCON MS Common data values CP [bar] 80 Metric (mm) Ordering code DCONMS DCONWS CNT BD 1 LB _ LF 1 _ OHN OHX CNSC CXSC OAL TQ [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [Nm] HT30D-CY16 156-16 16.00 16.00 G 1/8-28 16.0 156.0 156.00 55.0 92.0 1 1 156.27 2.0 HT30D-CY20 200-20 20.00 20.00 G 1/4-19 20.0 200.0 200.00 70.0 120.0 1 1 200.27 3.0 HT30D-CY25 255-25 25.00 25.00 G 1/4-19 25.0 255.0 255.00 88.0 155.0 1 1 255.27 3.7 HT30D-CY25 330-25 25.00 25.00 G 1/4-19 25.0 330.0 330.00 155.0 230.0 1 1 330.27 3.7 ​ Common data values CP [lbf/in2] 1160 Imperial (inch) Ordering code DCONMS DCONWS CNT BD 1 LB _ LF 1 _ OHN OHX CNSC CXSC OAL TQ [inch] [inch] [inch] [inch] [inch] [inch] [inch] [inch] [ft] HT30D-CYA10 156-16 0.625 0.630 G 1/8-28 0.630 6.142 6.142 2.165 3.661 1 1 6.152 1.5 HT30D-CYA12 190-20 0.750 0.787 G 1/8-28 0.787 7.480 7.480 3.071 4.488 1 1 7.491 2.2 HT30D-CYA16 260-25 1.000 0.984 G 1/4-19 1.000 10.236 10.236 3.346 6.260 1 1 10.247 2.7 HT30D-CYA16 336-25 1.000 0.984 G 1/4-19 1.000 13.213 13.228 6.102 9.252 1 1 13.239 2.7 ​ 422
