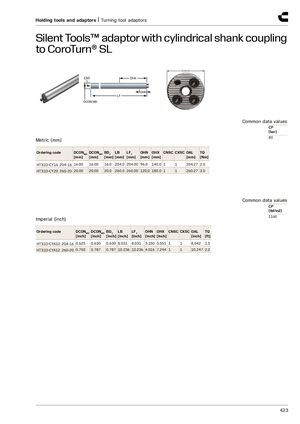

Держатели инструмента и адаптеры | Адаптеры для токарных инструментов
Адаптер Silent Tools™ с цилиндрическим хвостовиком к CoroTurn® SL
Размеры в миллиметрах
| Артикул | DCONMS [мм] | DCONWS [мм] | BD 1 [мм] | LB [мм] | LF 1 [мм] | OHN [мм] | OHX [мм] | CNSC | CXSC | OAL [мм] | TQ [Нм] |
|---|---|---|---|---|---|---|---|---|---|---|---|
| HT31D-CY16 204-16 | 16,00 | 16,00 | 16,0 | 204,0 | 204,00 | 96,0 | 140,0 | 1 | 1 | 204,27 | 2,0 |
| HT31D-CY20 260-20 | 20,00 | 20,00 | 20,0 | 260,0 | 260,00 | 120,0 | 180,0 | 1 | 1 | 260,27 | 3,0 |
Общие характеристики: CP [бар] = 80
Размеры в дюймах
| Артикул | DCONMS [дюйм] | DCONWS [дюйм] | BD 1 [дюйм] | LB [дюйм] | LF 1 [дюйм] | OHN [дюйм] | OHX [дюйм] | CNSC | CXSC | OAL [дюйм] | TQ [фт] |
|---|---|---|---|---|---|---|---|---|---|---|---|
| HT31D-CYA10 204-16 | 0,625 | 0,630 | 0,630 | 8,031 | 8,031 | 3,150 | 5,551 | 1 | 1 | 8,042 | 1,5 |
| HT31D-CYA12 260-20 | 0,750 | 0,787 | 0,787 | 10,236 | 10,236 | 4,016 | 7,244 | 1 | 1 | 10,247 | 2,2 |
Общие характеристики: CP [фунт-сила/дюйм²] = 1160
