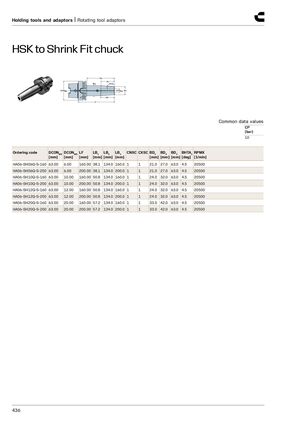

Державки и адаптеры | Адаптеры для вращающихся инструментов
Адаптер HSK для патрона Shrink Fit
Общие значения данных
| Параметр | Значение |
|---|---|
| CP [bar] | 10 |
Метрические размеры (мм)
| Артикул | DCON MS [мм] | DCON WS [мм] | LF [мм] | LB 1 [мм] | LB 2 [мм] | LB 3 [мм] | CNSC | CXSC | BD 1 [мм] | BD 2 [мм] | BD 3 [мм] | BHTA 1 [град] | RPMX [1/мин] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| HA06-SH06Q-S-160 | 63,00 | 6,00 | 160,00 | 38,1 | 134,0 | 160,0 | 1 | 1 | 21,0 | 27,0 | 63,0 | 4,5 | 20500 |
| HA06-SH06Q-S-200 | 63,00 | 6,00 | 200,00 | 38,1 | 134,0 | 200,0 | 1 | 1 | 21,0 | 27,0 | 63,0 | 4,5 | 20500 |
| HA06-SH10Q-S-160 | 63,00 | 10,00 | 160,00 | 50,8 | 134,0 | 160,0 | 1 | 1 | 24,0 | 32,0 | 63,0 | 4,5 | 20500 |
| HA06-SH10Q-S-200 | 63,00 | 10,00 | 200,00 | 50,8 | 134,0 | 200,0 | 1 | 1 | 24,0 | 32,0 | 63,0 | 4,5 | 20500 |
| HA06-SH12Q-S-160 | 63,00 | 12,00 | 160,00 | 50,8 | 134,0 | 160,0 | 1 | 1 | 24,0 | 32,0 | 63,0 | 4,5 | 20500 |
| HA06-SH12Q-S-200 | 63,00 | 12,00 | 200,00 | 50,8 | 134,0 | 200,0 | 1 | 1 | 24,0 | 32,0 | 63,0 | 4,5 | 20500 |
| HA06-SH20Q-S-160 | 63,00 | 20,00 | 160,00 | 57,2 | 134,0 | 160,0 | 1 | 1 | 33,0 | 42,0 | 63,0 | 4,5 | 20500 |
| HA06-SH20Q-S-200 | 63,00 | 20,00 | 200,00 | 57,2 | 134,0 | 200,0 | 1 | 1 | 33,0 | 42,0 | 63,0 | 4,5 | 20500 |
