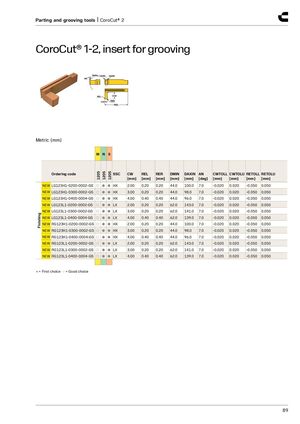

Пластины CoroCut® 1-2 для канавкообработки
Чистовая обработка
| Артикул | Применение | SSC [мм] | CW [мм] | REL [мм] | RER [мм] | DMIN [мм] | DAXIN [мм] | AN [град] | CWTOLL [мм] | CWTOLU [мм] | RETOLL [мм] | RETOLU [мм] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| NEW LG123H1-0200-0002-GS | HX | 2.00 | 0.20 | 0.20 | 44.0 | 100.0 | 7.0 | -0.020 | 0.020 | -0.050 | 0.050 | |
| NEW LG123H1-0300-0002-GS | HX | 3.00 | 0.20 | 0.20 | 44.0 | 98.0 | 7.0 | -0.020 | 0.020 | -0.050 | 0.050 | |
| NEW LG123H1-0400-0004-GS | HX | 4.00 | 0.40 | 0.40 | 44.0 | 96.0 | 7.0 | -0.020 | 0.020 | -0.050 | 0.050 | |
| NEW LG123L1-0200-0002-GS | LX | 2.00 | 0.20 | 0.20 | 62.0 | 143.0 | 7.0 | -0.020 | 0.020 | -0.050 | 0.050 | |
| NEW LG123L1-0300-0002-GS | LX | 3.00 | 0.20 | 0.20 | 62.0 | 141.0 | 7.0 | -0.020 | 0.020 | -0.050 | 0.050 | |
| NEW LG123L1-0400-0004-GS | LX | 4.00 | 0.40 | 0.40 | 62.0 | 139.0 | 7.0 | -0.020 | 0.020 | -0.050 | 0.050 | |
| NEW RG123H1-0200-0002-GS | HX | 2.00 | 0.20 | 0.20 | 44.0 | 100.0 | 7.0 | -0.020 | 0.020 | -0.050 | 0.050 | |
| NEW RG123H1-0300-0002-GS | HX | 3.00 | 0.20 | 0.20 | 44.0 | 98.0 | 7.0 | -0.020 | 0.020 | -0.050 | 0.050 | |
| NEW RG123H1-0400-0004-GS | HX | 4.00 | 0.40 | 0.40 | 44.0 | 96.0 | 7.0 | -0.020 | 0.020 | -0.050 | 0.050 | |
| NEW RG123L1-0200-0002-GS | LX | 2.00 | 0.20 | 0.20 | 62.0 | 143.0 | 7.0 | -0.020 | 0.020 | -0.050 | 0.050 | |
| NEW RG123L1-0300-0002-GS | LX | 3.00 | 0.20 | 0.20 | 62.0 | 141.0 | 7.0 | -0.020 | 0.020 | -0.050 | 0.050 | |
| NEW RG123L1-0400-0004-GS | LX | 4.00 | 0.40 | 0.40 | 62.0 | 139.0 | 7.0 | -0.020 | 0.020 | -0.050 | 0.050 |
● = Первый выбор ○ = Хороший выбор
